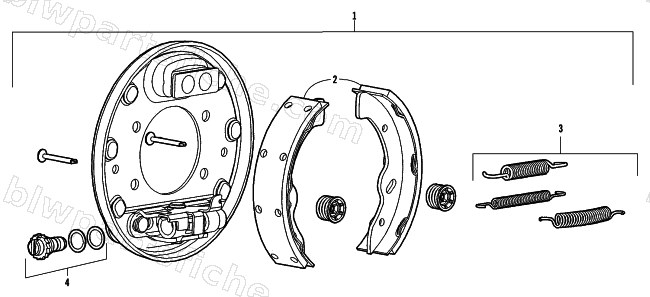

2002 Arctic Cat SBS 1000 — BRAKE ASSEMBLY
2002 SBS 1000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3401-185 | BRAKE-RH (160MM) | 1 | $509.95 | |
| 1 | 3401-184 | BRAKE-LH (160MM) | 1 | $509.95 | |
| 2 | 3401-484 | KIT-SHOE AND LINING | 1 | $416.95 | |
| 3 | 3401-485 | SPRINGS | 1 | $25.95 | |
| 4 | 3401-486 | " KIT-ADJUSTER,RH" | 1 | $32.95 | |
| 4 | 3401-487 | " KIT-ADJUSTER,LH" | 1 | $32.95 |
