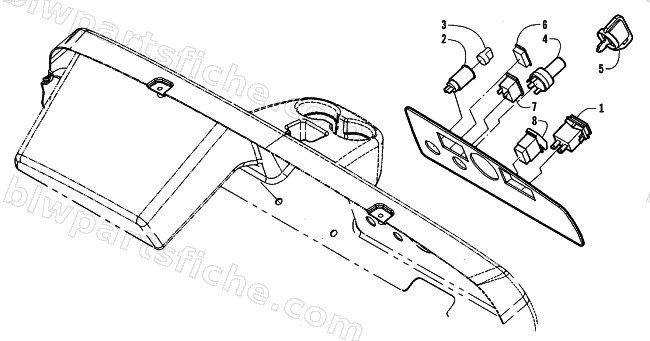

2002 Arctic Cat SBS 1000 — DASH ASSEMBLY
2002 SBS 1000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3401-162 | HOURMETER | 1 | $180.95 | |
| 2 | 3401-215 | POINT-POWER | 1 | $27.95 | |
| 3 | 3401-216 | CAP | 1 | $7.95 | |
| 4 | 3401-029 | SWITCH-IGNITION | 1 | $36.95 | |
| 5 | 3401-042 | KEY-IGNITION, AC | 1 | $7.95 | |
| 6 | 3401-217 | PLUG-HOLE | 1 | $8.95 | |
| 7 | 3401-214 | LIGHT-OIL | 1 | $20.95 | |
| 8 | 3401-167 | SWITCH | 1 | $56.95 |
