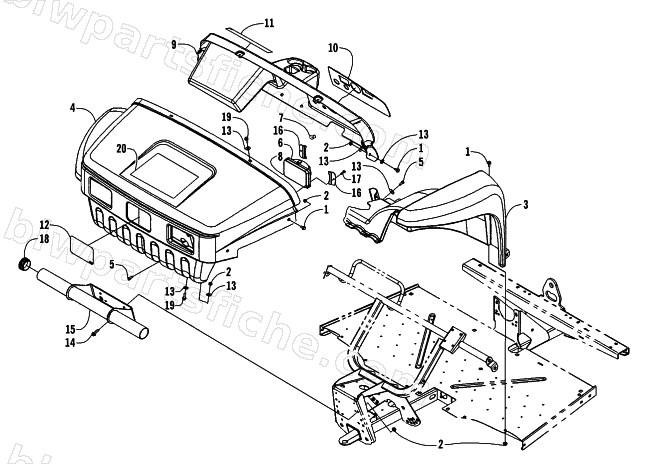

2002 Arctic Cat SBS 1000 — HOOD AND FENDER ASSEMBLY
2002 SBS 1000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3401-101 | "SCREW (.313-18NC X .750,GR5)" | 1 | $4.95 | |
| 2 | 3401-048 | "NUT-FLANGE, NI (5/16-18 UNC)" | 1 | $1.95 | |
| 3 | 3401-210 | FENDER ASM-LH | 1 | $181.95 | |
| 3 | 3401-211 | FENDER ASM-RH | 1 | $205.95 | |
| 4 | 3401-030 | "HOOD ASM, A.C." | 1 | $843.95 | |
| 5 | 3401-068 | SCREW-HH (.312-18X.75,YZ,TYPE" | 1 | $2.95 | |
| 6 | 3401-155 | HEADLIGHT | 1 | $87.95 | |
| 7 | 3401-527 | BULB, HEADLIGHT | 1 | $156.95 | |
| 8 | 3401-528 | " LENS-LIGHT, HEAD" | 1 | $104.95 | |
| 9 | 3401-212 | DASH ASM (SERVICE) | 1 | $401.95 | |
| 10 | 3401-529 | " DECAL-WARNING, DASH" | 1 | $68.95 | |
| 11 | 3401-530 | DECAL-DANGER | 1 | $25.95 | |
| 12 | 3401-033 | "DECAL-GRILL, AC" | 1 | $18.95 | |
| 13 | 3401-110 | "WASHER-FLAT(.375 X.875,STL YZ," | 1 | $2.95 | |
| 14 | 3401-078 | SCREW (7/16-14 X1-1/4) | 1 | $4.95 | |
| 15 | 3401-240 | "BUMPER-TUBE (WELDED, BLACK)" | 1 | $166.95 | |
| 16 | 3401-256 | BRACKET-HEADLIGHT | 1 | $25.95 | |
| 17 | 3401-203 | SCREW-HWH (#12-9 X 1.00"" PLT-3 | 1 | $6.95 | |
| 18 | 3401-052 | CAP-END | 1 | $17.95 | |
| 19 | 3401-097 | SCREW-HHF | 1 | $10.95 | |
| 20 | 3401-031 | "DECAL-HOOD, AC" | 1 | $43.95 |
