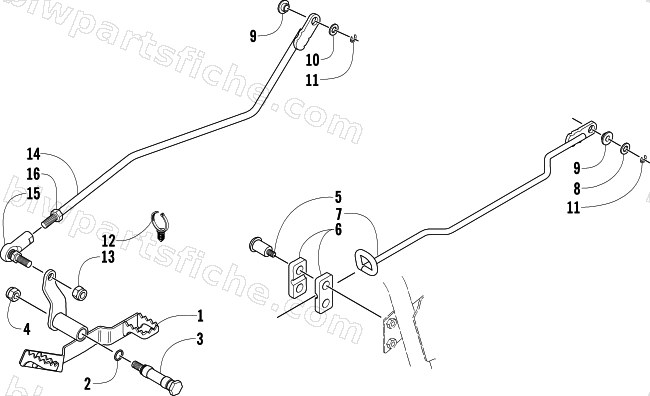

2003 Arctic Cat 300 (2X4 ) — SHIFTER ASSEMBLY
2003 300 (2X4 )
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-253 | LEVER, FOOTSHIFT-BLACK | 1 | $43.95 | |
| 2 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 4 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 5 | 0423-329 | SCREW,SHLDR-TSH-T30X M6(12.7DX 19.0) | 1 | $1.50 | |
| 6 | 0406-363 | BUSHING,HIGH/LOW SHIFT | 1 | $9.59 | |
| 7 | 0502-257 | LINKAGE,HIGH/LOW-WELDMENT | 1 | $68.95 | |
| 8 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 9 | 0423-091 | BUSHING,SHIFT | 1 | $3.16 | |
| 10 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 11 | 3423-860 | E RING | 1 | $3.30 | |
| 12 | 0423-075 | TIE,CABLE-PUSH MOUNT | 1 | $0.95 | |
| 13 | 0623-025 | NUT,LOCK3/8-24 NF | 1 | $3.16 | |
| 14 | 0502-256 | LINKAGE,SHIFT-ASSY | 1 | $62.95 | |
| 15 | 0402-844 | ROD END-3/8" | 1 | $32.95 | |
| 16 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 |
