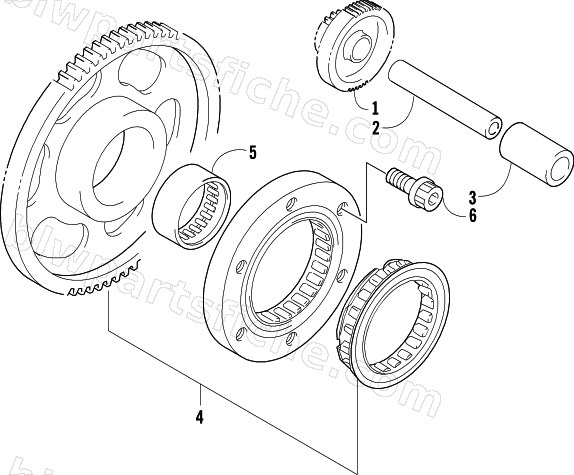

2003 Arctic Cat 300 (2X4 ) — STARTER CLUTCH ASSEMBLY
2003 300 (2X4 )
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-984 | GEAR,STARTER IDLE | 1 | $122.95 | |
| 2 | 3423-267 | PIN,GEAR,13MM | 1 | $26.95 | |
| 3 | 3402-145 | SPACER,M13X19X32.8 | 1 | $22.95 | |
| 4 | 3402-273 | CLUTCH SET,STARTER | 1 | $440.95 | |
| 5 | 3402-222 | BEARING,ROLLER,M25X31X19 | 1 | $62.95 | |
| 6 | 3423-309 | BOLT (8X16) | 1 | $3.57 |
