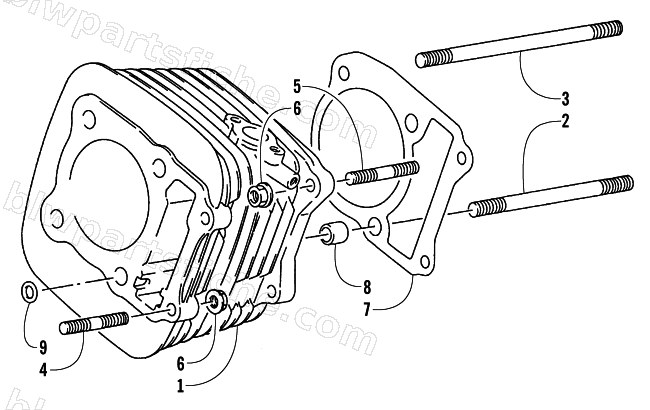

2003 Arctic Cat 300 (4X4 ) — CYLINDER ASSEMBLY
2003 300 (4X4 )
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-251 | CYLINDER (300 ATV) | 1 | $619.95 | |
| 2 | 3423-238 | BOLT,STUD,8MM | 1 | $10.97 | |
| 3 | 3423-239 | BOLT,STUD,8MM | 1 | $12.35 | |
| 4 | 3007-480 | BOLT,STUD | 1 | $2.06 | |
| 5 | 3423-237 | STUD,6MM | 1 | $4.40 | |
| 6 | 3007-373 | NUT | 1 | $3.16 | |
| 7 | 3402-252 | GASKET,CYLINDER(NA) | 1 | $50.95 | |
| 8 | 3423-306 | PIN,KNOCK(ALIGMENT) | 1 | $4.13 | |
| 9 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 |
