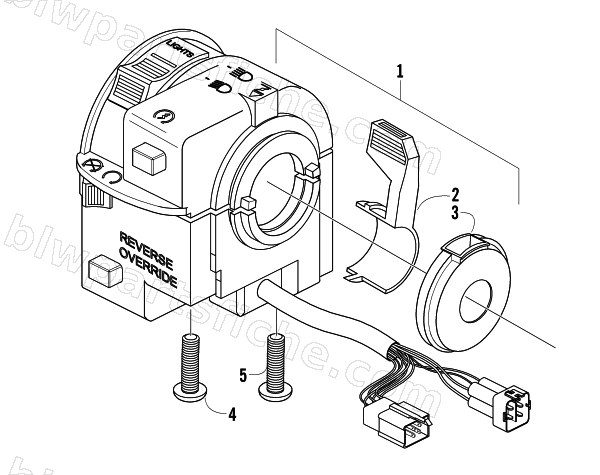

2003 Arctic Cat 400 4X4 AUTOMATIC TRANSMISSION () — CONTROL SWITCH HOUSING ASSEMBLY
2003 400 4X4 AUTOMATIC TRANSMISSION ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0409-022 | SWITCH, CONTROL LH - ASSEMBLY (W/ OVER R | 1 | $196.95 | |
| 2 | 0409-025 | LEVER, CHOKE | 1 | $20.63 | |
| 3 | 0409-026 | COVER, CHOKE LEVER | 1 | $17.87 | |
| 4 | 0409-027 | SCREW, SWITCH CONTROL - 5X35-6ZK | 1 | $4.95 | |
| 5 | 0409-028 | SCREW, SWITCH CONTROL - 5X45-6ZK | 1 | $4.95 |
