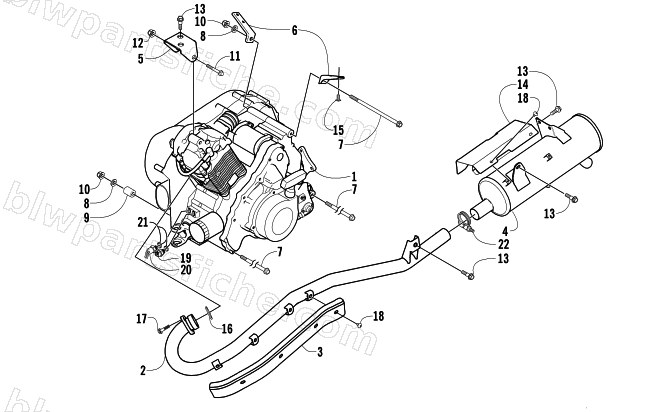

ENGINE AND EXHAUST
2003 400 4X4 AUTOMATIC TRANSMISSION ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0462-017 | ENGINE ASSY (400AFK2 FROM 0463-017) | 1 | $4,023.95 | |
| 2 | 0512-040 | PIPE, EXHAUST-BLACK | 1 | $162.95 | |
| 3 | 0412-112 | SHIELD, EXHAUST PIPE | 1 | $37.95 | |
| 4 | 0412-182 | MUFFLER-BLACK | 1 | $638.95 | |
| 5 | 0506-631 | BRKT, ENGINE MTG-UPPER-BLACK | 1 | $20.63 | |
| 6 | 0506-983 | BRACKET,MOTOR MTG- RH-BLACK | 1 | $20.95 | |
| 6 | 0506-984 | BRACKET, MOTOR MTG-LH-BLACK | 1 | $20.95 | |
| 7 | 3423-009 | BOLT, 10X215 | 1 | $10.97 | |
| 8 | 0423-050 | WASHER, MOTOR MOUNT | 1 | $2.95 | |
| 9 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 10 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 11 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 12 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 13 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 14 | 1406-023 | COVER, MUFFLER | 1 | $46.95 | |
| 15 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 16 | 0412-007 | SEAL,EXHAUST PIPE | 1 | $17.87 | |
| 17 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 18 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 19 | 3530-037 | SWITCH, OIL LAMP | 1 | $196.95 | |
| 20 | 3430-033 | SWITCH, COOL FAN | 1 | $268.95 | |
| 21 | 3402-556 | GASKET, OIL LAMP SWITCH | 1 | $12.35 | |
| 22 | 0423-150 | CLAMP,EXHAUST (NORMA ARS-M8-39.5) | 1 | $27.95 |
