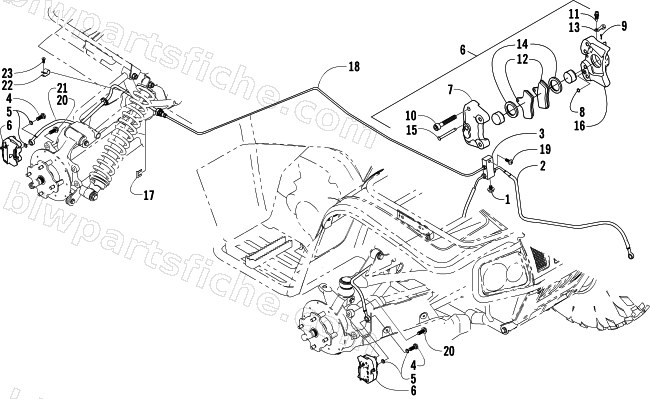

HYDRAULIC BRAKE ASSEMBLY
2003 400 4X4 AUTOMATIC TRANSMISSION ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 3 | 1402-086 | BLOCK, JUNCTION-BRAKE | 1 | $61.95 | |
| 4 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 5 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 6 | 1436-422 | R/B 2502-574 | 1 | $190.95 | |
| 6 | 1436-423 | R/B 2502-575 | 1 | $432.95 | |
| 8 | 0402-490 | O-RING, HYD BRAKE CALIPER | 1 | $1.78 | |
| 9 | 0423-495 | PIN, COTTER -1/16" X 1/2" | 1 | $0.65 | |
| 10 | 0402-492 | SCREW, CAP-HSH-HYD BRAKE(OL) | 1 | $1.50 | |
| 12 | 0402-882 | PAD, BRAKE | 1 | $29.95 | |
| 13 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 14 | 0402-980 | O RING-SQUARE | 1 | $17.87 | |
| 15 | 0402-495 | PIN,HYD BRAKE CALIPER-(OL) | 1 | $3.57 | |
| 17 | 0402-597 | CLIP, BRAKE LINE-PLATED | 1 | $9.59 | |
| 18 | 0402-932 | TUBE, BRAKE LINE-REAR | 1 | $34.95 | |
| 19 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 20 | 0402-306 | SWITCH,BRAKE PRESSURE | 1 | $129.95 | |
| 21 | 0402-990 | HOSE,BRAKE-REAR (ACT) | 1 | $84.95 |
