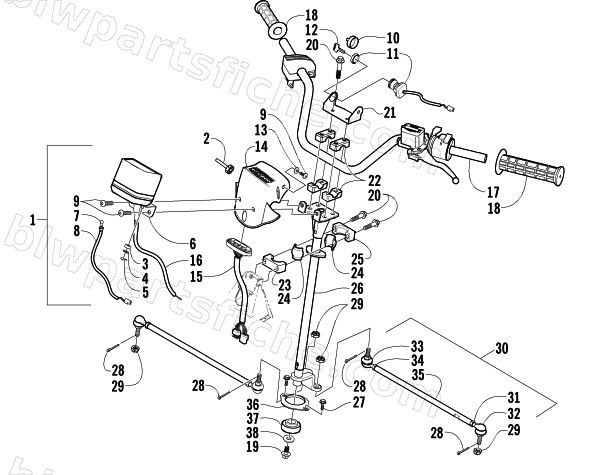

STEERING ASSEMBLY
2003 400 4X4 AUTOMATIC TRANSMISSION ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0420-031 | SPEEDO, ASSY (MI/KL) | 1 | $231.95 | |
| 2 | 0420-027 | KNOB,SPEEDO-TRIP | 1 | $17.87 | |
| 3 | 0420-016 | MOUNT,RUBBER | 1 | $3.30 | |
| 4 | 0420-017 | PLAIN WASHER | 1 | $1.95 | |
| 5 | 0420-015 | SPLIT PIN | 1 | $3.02 | |
| 6 | 0420-018 | BRKT-ASSY | 1 | $76.95 | |
| 7 | 0620-149 | BULB,T-10 WEDGE BASE-12V 1.7W | 1 | $4.95 | |
| 8 | 0420-014 | CORD ASSY(SPEEDO) | 1 | $29.95 | |
| 9 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 10 | 0409-013 | COVER,KEY | 1 | $6.34 | |
| 11 | 3430-040 | SWITCH, IGN | 1 | $187.95 | |
| 12 | 3409-007 | KEY, BLANK (C SERIES) | 1 | $30.95 | |
| 12 | 3409-011 | KEY, BLANK ( D SERIES) | 1 | $30.95 | |
| 12 | 3409-012 | KEY, BLANK (E SERIES) | 1 | $30.95 | |
| 12 | 3409-013 | KEY, BLANK (F SERIES) | 1 | $30.95 | |
| 13 | 0423-052 | COLLAR,6MM BODY | 1 | $10.95 | |
| 14 | 0405-063 | INSTRUMENT HSNG | 1 | $20.63 | |
| 15 | 0420-035 | PANEL, LED (4) | 1 | $122.95 | |
| 16 | 0487-026 | CABLE, SPEEDOMETER | 1 | $64.95 | |
| 17 | 0505-410 | HANDLEBAR,BLACK | 1 | $58.95 | |
| 18 | 0405-106 | GRIP,HANDLEBAR | 1 | $20.63 | |
| 19 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 20 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 21 | 0506-348 | BRKT,KEY SWITCH-BLACK | 1 | $58.95 | |
| 22 | 0405-035 | CAP,STEERING ADJUSTER | 1 | $17.87 | |
| 23 | 0605-171 | CAP, BEARING - STEERING POST | 1 | $19.95 | |
| 24 | 0405-020 | BEARING,STEERING POST | 1 | $2.33 | |
| 25 | 0705-064 | HSNG,BEARING-UPPER-PTD BLK | 1 | $19.25 | |
| 26 | 0505-431 | POST, STEERING-BLACK | 1 | $113.95 | |
| 27 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 28 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 29 | 0423-157 | NUT, TOP-LOCK | 1 | $0.95 | |
| 30 | 0505-072 | TIE ROD-ASSY | 1 | $177.95 | |
| 31 | 8420-002 | NUT,HEX - M10 X 1.25 CL8 Z&Y | 1 | $0.68 | |
| 32 | 0405-502 | R/B 0505-874 | 1 | $54.95 | |
| 33 | 0505-875 | ROD END PKG,TIE ROD-LH THREAD | 1 | $54.95 | |
| 34 | 0423-013 | NUT,HEX M10-1.25(LH) Z&Y | 1 | $1.09 | |
| 35 | 0405-032 | TIE ROD | 1 | $45.95 | |
| 36 | 0602-233 | FLANGE,BRG-TWO MTG HOLE | 1 | $4.26 | |
| 37 | 0405-052 | BEARING, (ATV-BB-4) LOW SPEED-STEERING | 1 | $49.95 | |
| 38 | 0423-073 | WASHER,FLAT-1.38 OD X .413 ID X.134 TH | 1 | $1.50 |
