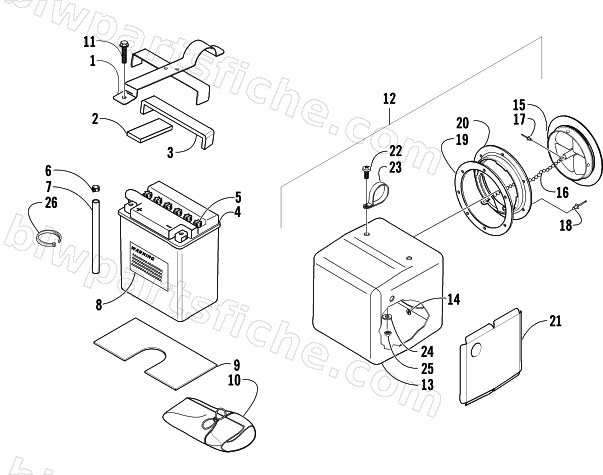

2003 Arctic Cat 400 4X4 AUTOMATIC TRANSMISSION () — STORAGE BOX AND BATTERY ASSEMBLY
2003 400 4X4 AUTOMATIC TRANSMISSION ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-178 | STRAP,BATTERY W/PAD | 1 | $26.95 | |
| 2 | 0406-288 | PAD,BATTERY-TOP FR | 1 | $6.34 | |
| 3 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 4 | 0745-045 | BATTERY PKG (0645-165) | 1 | $124.95 | |
| 5 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 6 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 7 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 8 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 9 | 0406-227 | PAD,BATTERY-LOWER | 1 | $3.57 | |
| 10 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 11 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 12 | 1506-032 | BOX,TOOL-ASSY | 1 | $125.95 | |
| 13 | 1406-236 | BOX,TOOL-ROUTED | 1 | $67.95 | |
| 14 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 15 | 0406-208 | LID,TOOLBOX | 1 | $13.73 | |
| 16 | 0773-401 | CHAIN STORAGE MFG ASSY | 1 | $10.97 | |
| 17 | 8061-223 | RIVET,BLIND-LF AA42 BLACK | 1 | $0.15 | |
| 18 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 19 | 0673-973 | SEAL, STORAGE COVER | 1 | $106.95 | |
| 20 | 0406-205 | RING,MNTG-TOOL BOX LID | 1 | $13.95 | |
| 21 | 1406-237 | SHIELD,HEAT (PSA) | 1 | $40.95 | |
| 22 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 23 | 0423-044 | CLAMP,TUBE-1" ARDEN(COV 1709 ZI) | 1 | $2.61 | |
| 24 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 25 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 26 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
