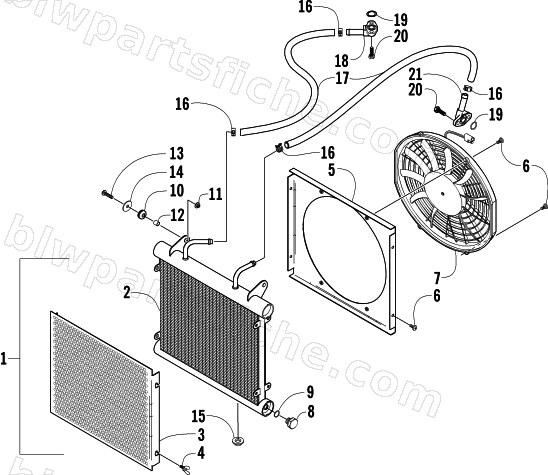

OIL COOLER ASSEMBLY
2003 400 FIS AUTOMATIC TRANSMISSION (4X4 )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-052 | COOLER, OIL | 1 | $928.95 | |
| 2 | 0413-053 | COOLER,OIL | 1 | $443.95 | |
| 3 | 0413-007 | SCREEN,RADIATOR | 1 | $85.95 | |
| 4 | 0413-009 | THUMB SCREW-RAD | 1 | $6.95 | |
| 5 | 0413-064 | SHROUD,FAN-OIL COOLER | 1 | $67.95 | |
| 6 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 7 | 0413-123 | FAN,RADIATOR | 1 | $224.95 | |
| 8 | 0413-058 | PLUG,DRAIN | 1 | $4.95 | |
| 9 | 0413-059 | O-RING,DRAIN PLUG | 1 | $2.95 | |
| 10 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 11 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 12 | 0423-036 | COLLAR,.375" OD X.26" ID X.375" | 1 | $20.63 | |
| 13 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 14 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 15 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 16 | 0423-098 | CLAMP,HOSE(NORMA FBS 17-12) | 1 | $2.75 | |
| 17 | 0410-044 | HOSE,OIL-30 (0410-014 CTL) | 1 | $47.95 | |
| 18 | 0410-013 | FITTING,OIL - MACH | 1 | $58.95 | |
| 19 | 0423-089 | O-RING,OIL FITTING-1/2IDX11/16OD X 3/32 | 1 | $2.06 | |
| 20 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 21 | 0410-012 | FITTING,OIL ANGLED - MACH | 1 | $58.95 |
