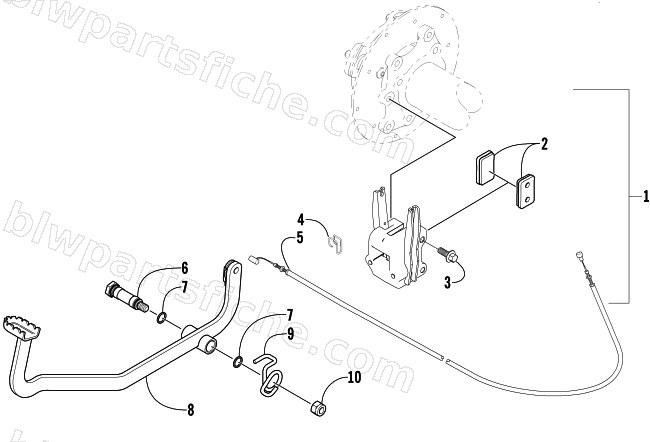

2003 Arctic Cat 400 FIS MANUAL TRANSMISSION (2X4 ) — AUXILIARY BRAKE ASSEMBLY
2003 400 FIS MANUAL TRANSMISSION (2X4 )
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-865 | CALIPER,BRAKE-MECHANICAL | 1 | $180.95 | |
| 2 | 1402-602 | PAD,BRAKE-MECH PARK | 1 | $30.95 | |
| 3 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 4 | 0402-379 | WIRE FORM,CABLE | 1 | $4.13 | |
| 5 | 0487-006 | CABLE,BRAKE RR | 1 | $89.95 | |
| 6 | 0402-872 | AXLE-FOOTBRAKE | 1 | $37.95 | |
| 7 | 0423-096 | O-RING .489 I.D X .070 W PARKER 2-014 | 1 | $1.64 | |
| 8 | 0502-236 | LEVER, BRAKE-BLACK | 1 | $71.95 | |
| 9 | 0502-395 | SPRING, RETURN - BLACK | 1 | $37.95 | |
| 10 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 |
