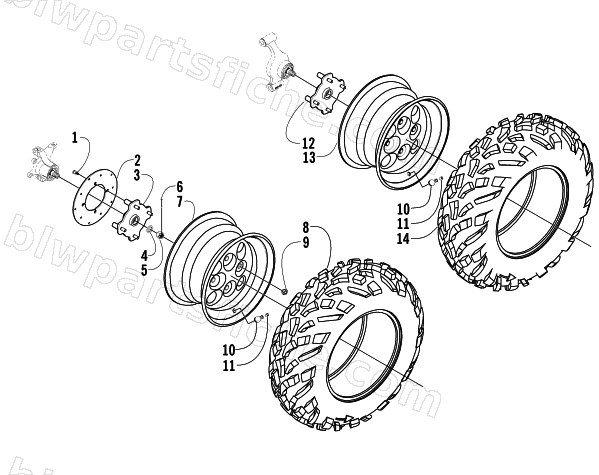

WHEEL AND TIRE ASSEMBLY
2003 500 FIS AUTOMATIC TRANSMISSION ( - MRP)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-164 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 3 | 0502-421 | HUB - ASSY | 1 | $180.95 | |
| 4 | 0402-181 | SEAL,HUB | 1 | $1.64 | |
| 5 | 0423-394 | NUT,CASTLE FLANGE-M18X1.5 Z&Y | 1 | $13.73 | |
| 6 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 7 | 0402-856 | WHEEL ASSY-GRAY 12" | 1 | $114.95 | |
| 8 | 0402-890 | TIRE,25X8-12 - DUNLOP KT123A | 1 | $179.95 | |
| 9 | 0423-408 | NUT,LUG-M10 | 1 | $1.37 | |
| 10 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 12 | 0502-423 | HUB - ASSY | 1 | $180.95 | |
| 13 | 0402-858 | WHEEL,REAR-ASSY (GRAY) 12" | 1 | $114.95 | |
| 14 | 0402-926 | TIRE,25X11-12 - DUNLOP KT127B | 1 | $187.95 |
