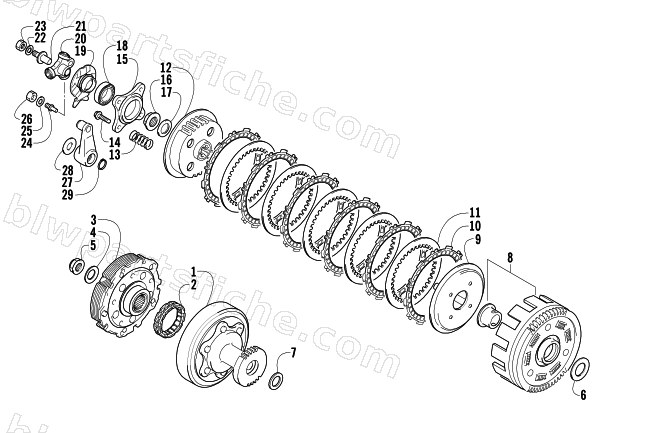

CLUTCH ASSEMBLY
2003 500 FIS MANUAL TRANSMISSION ( - MRP)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-329 | HOUSING, STARTER CLUTCH | 1 | $360.95 | |
| 2 | 3446-003 | CLUTCH, PRI DRIVE ONE WAY | 1 | $220.95 | |
| 3 | 3446-330 | SHOE, STARTER CLUTCH | 1 | $501.95 | |
| 4 | 3423-032 | WASHER,20MM | 1 | $4.13 | |
| 5 | 3423-081 | NUT, STARTER CLUTCH SHOE | 1 | $17.87 | |
| 6 | 3423-122 | WASHER, PRIMARY DRIVEN GEAR-M22X42 | 1 | $4.13 | |
| 7 | 3423-350 | WASHER,T:2.0,33MM | 1 | $6.34 | |
| 8 | 3446-331 | GEAR ASSY, PRIMARY DRIVEN | 1 | $591.95 | |
| 9 | 3446-008 | DISK, CLUTCH PRESSURE | 1 | $108.95 | |
| 10 | 3446-332 | PLATE, CLUTCH DRIVE | 1 | $58.95 | |
| 11 | 3446-007 | PLATE, CLUTCH DRIVEN | 1 | $37.95 | |
| 12 | 3446-004 | HUB, CLUTCH SLEEVE | 1 | $181.95 | |
| 13 | 3423-544 | SPRING, CLUTCH | 1 | $20.63 | |
| 14 | 3423-330 | BOLT 6X25 | 1 | $2.06 | |
| 15 | 3446-009 | PLATE, CLUTCH RELEASE | 1 | $47.95 | |
| 16 | 3423-080 | NUT, CLUTCH SLEEVE HUB | 1 | $16.49 | |
| 18 | 3402-186 | BEARING,BALL(25X42X9) | 1 | $71.95 | |
| 19 | 3446-334 | GUIDE, CL RELEASE ROLLER | 1 | $91.95 | |
| 20 | 3446-335 | ROLLER ASSY, CLUTCH RELEASE | 1 | $118.95 | |
| 21 | 3423-361 | BOLT,CLUTCH RLSE.ADJ.NO.1 | 1 | $6.34 | |
| 22 | 3423-360 | WASHER,8X20X1 | 1 | $3.02 | |
| 23 | 3423-359 | NUT,8MM | 1 | $1.50 | |
| 24 | 3423-083 | BOLT, CLUTCH RELEASE ADJ NO.2 | 1 | $6.95 | |
| 25 | 3423-027 | WASHER,6.5X16X1.2 | 1 | $2.06 | |
| 26 | 3008-014 | NUT, 6MM | 1 | $2.06 | |
| 27 | 3446-333 | ARM, CLUTCH RELEASE | 1 | $174.95 | |
| 28 | 3423-545 | WASHER, CLUTCH RLSE ARM | 1 | $3.02 | |
| 29 | 3423-546 | CIRCLIP, CL RLSE ARM | 1 | $5.95 |
