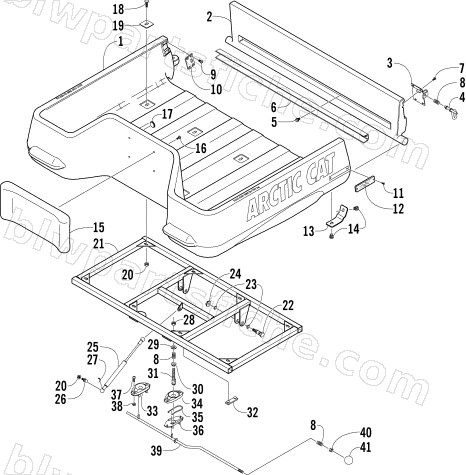

2003 Arctic Cat 500 TBX — CARGO BOX AND TILT FRAME ASSEMBLY
2003 500 TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-509 | BOX,CARGO | 1 | $1,098.95 | |
| 2 | 0506-887 | TAILGATE-MFG ASSY | 1 | $381.95 | |
| 3 | 0506-504 | BODY,LATCH-RH-BLACK | 1 | $62.95 | |
| 3 | 0506-505 | BODY,LATCH-LH-BLACK | 1 | $64.95 | |
| 4 | 0506-884 | PIN,LATCH-RH-PTD BLACK | 1 | $72.95 | |
| 4 | 0506-885 | PIN,LATCH-LH-PTD BLACK | 1 | $74.95 | |
| 5 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 6 | 0406-807 | CHANNEL, REINFORCEMENT-TAILGATE | 1 | $169.95 | |
| 7 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 8 | 0406-934 | SPRING, LATCH-TAILGATE | 1 | $8.21 | |
| 9 | 8474-616 | SCREW,MACH-TSFH M6X1.0X16 CL8.8 BLK | 1 | $12.35 | |
| 10 | 2406-114 | STRIKE,LATCH-TAILGATE-BLACK | 1 | $20.63 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 13 | 0506-986 | BRACKET, HINGE - BLACK | 1 | $13.73 | |
| 14 | 0423-412 | SCREW,MACH-TSTRH M8X1.25X12 PHOS BLK | 1 | $4.54 | |
| 15 | 0506-686 | PAD, BACK REST | 1 | $156.95 | |
| 16 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 17 | 0616-348 | PLUG,BELLYPAN 1.12 | 1 | $1.50 | |
| 18 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 19 | 1506-166 | PLATE,RETAINER-BLACK | 1 | $10.97 | |
| 20 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 21 | 0506-820 | FRAME,TILT-BLACK | 1 | $447.95 | |
| 22 | 0423-433 | PIN, PIVOT-CARGO BOX | 1 | $20.63 | |
| 23 | 0423-096 | O-RING .489 I.D X .070 W PARKER 2-014 | 1 | $1.64 | |
| 24 | 0423-388 | NUT,HEX FL M12-1.75 | 1 | $0.95 | |
| 25 | 0506-822 | SUPPORT,LIFT | 1 | $99.95 | |
| 26 | 0423-401 | STUD,LIFT SUPPORT | 1 | $20.95 | |
| 27 | 0423-414 | RING,RETAINING | 1 | $15.95 | |
| 28 | 0423-157 | NUT, TOP-LOCK | 1 | $0.95 | |
| 29 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 30 | 0423-322 | NUT, WHEEL MOUNTING-Z&C | 1 | $2.95 | |
| 31 | 0423-354 | STUD, LATCH CARGO BOX | 1 | $20.95 | |
| 32 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 33 | 2706-164 | SEAT LATCH-MFG ASSY | 1 | $15.11 | |
| 34 | 1673-634 | BACK,LATCH-SEAT | 1 | $8.95 | |
| 35 | 0673-023 | CLIP,SPRING RETAINING-SS | 1 | $39.95 | |
| 36 | 1673-635 | COVER,LATCH-SEAT | 1 | $5.95 | |
| 38 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 39 | 0506-687 | SHAFT, RELEASE-BLACK | 1 | $49.95 | |
| 40 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 41 | 1406-022 | KNOB, RELEASE | 1 | $26.95 |
