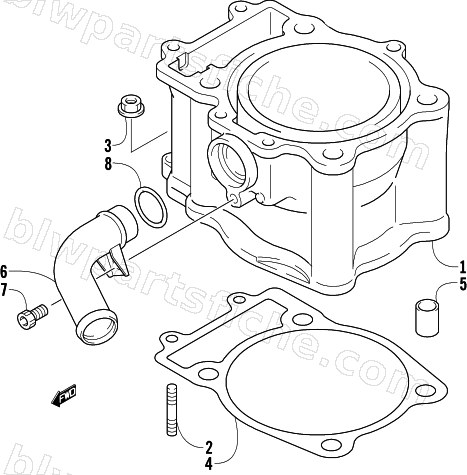

2003 Arctic Cat 500 TBX — CYLINDER ASSEMBLY
2003 500 TBX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-707 | CYLINDER (500) | 1 | $1,339.95 | |
| 2 | 3007-465 | BOLT,STUD | 1 | $2.75 | |
| 3 | 3007-373 | NUT | 1 | $3.16 | |
| 4 | 3402-365 | GASKET,CYLINDER | 1 | $33.95 | |
| 5 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 6 | 3413-013 | UNION, WATER HOSE | 1 | $58.95 | |
| 7 | 3423-882 | BOLT,UNION-6X16 | 1 | $3.30 | |
| 8 | 3423-058 | O RING, D:2.7, ID:21.4 | 1 | $4.40 |
