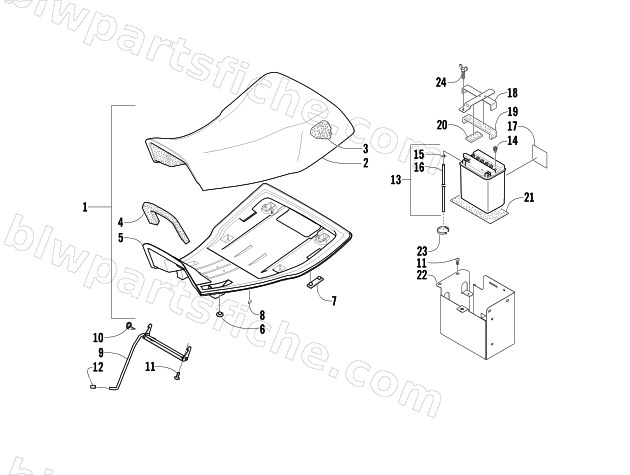

2003 Arctic Cat 500 TBX — SEAT AND BATTERY ASSEMBLIES
2003 500 TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-613 | SEAT, TBOX-ASSY | 1 | $781.95 | |
| 2 | 0506-556 | COVER, SEAT | 1 | $129.95 | |
| 3 | 0506-555 | FOAM,SEAT (68-72ILD).48@3.3 | 1 | $100.95 | |
| 4 | 1406-060 | FOAM,SOUND-SEAT | 1 | $11.95 | |
| 5 | 0406-925 | BASE,SEAT | 1 | $457.95 | |
| 6 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 7 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 8 | 0624-100 | STAPLE,3/8L X 1/2W-20GA SS-SEAT | 1 | $0.12 | |
| 9 | 1406-185 | LATCH,SEAT | 1 | $79.95 | |
| 10 | 1406-112 | SPRING,SEAT LATCH | 1 | $5.51 | |
| 11 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 13 | 0745-045 | BATTERY PKG (0645-165) | 1 | $124.95 | |
| 14 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 15 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 16 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 17 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 18 | 0506-877 | STRAP,BATTERY-W/PAD | 1 | $4.95 | |
| 19 | 1406-266 | PAD,FOAM-PSA BACK (1X4.25) | 1 | $3.95 | |
| 20 | 1406-265 | PAD,FOAM-PSA BACK (1X2.25) | 1 | $3.16 | |
| 21 | 1406-219 | PAD,BATTERY-LOWER | 1 | $13.73 | |
| 22 | 0506-872 | BOX,BATTERY-BLACK | 1 | $91.95 | |
| 23 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 24 | 0423-456 | THUMB SCREW, M6 X 13MM | 1 | $5.65 |
