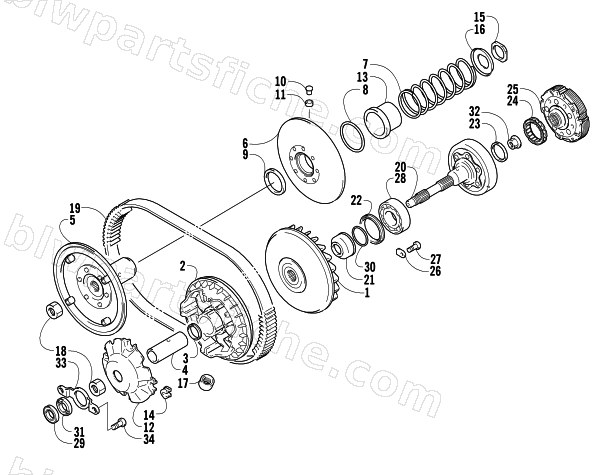

TRANSMISSION ASSEMBLY
2003 500 TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-750 | FACE, FIXED DRIVE | 1 | $292.95 | |
| 2 | 3402-751 | FACE, MOVABLE DRIVE | 1 | $292.95 | |
| 3 | 3402-470 | SEAL, MOVABLE DRIVE | 1 | $30.95 | |
| 4 | 3402-471 | SPACER, MOVABLE DRIVE | 1 | $90.95 | |
| 5 | 3402-752 | FACE, FIXED DRIVEN | 1 | $486.95 | |
| 6 | 3402-753 | FACE, MOVABLE DRIVEN | 1 | $471.95 | |
| 7 | 3402-474 | SPRING, MOVABLE DRIVEN | 1 | $90.95 | |
| 8 | 3402-475 | O RING, MOVABLE DRIVEN | 1 | $12.35 | |
| 9 | 3402-476 | SEAL, MOVABLE DRIVEN | 1 | $26.95 | |
| 10 | 3402-477 | PIN, MOVABLE DRIVEN | 1 | $12.35 | |
| 11 | 3402-478 | SPACER, MOVABLE DRIVEN | 1 | $13.73 | |
| 12 | 3402-755 | PLATE, MOVABLE DRIVE | 1 | $82.95 | |
| 13 | 3402-756 | SHEET, MOVABLE DRIVEN | 1 | $33.95 | |
| 14 | 3402-481 | DAMPER, MOVABLE DRIVE | 1 | $17.87 | |
| 15 | 3423-406 | NUT, DRIVEN PULLEY | 1 | $26.95 | |
| 16 | 3402-482 | HOLDER, MOVABLE DRIVEN | 1 | $37.95 | |
| 17 | 3402-483 | ROLLER, MOVABLE DRIVE | 1 | $30.95 | |
| 18 | 3423-514 | NUT, FACE | 1 | $9.59 | |
| 19 | 3402-757 | V BELT, DRIVE | 1 | $245.95 | |
| 20 | 3402-758 | HOUSING, CLUTCH | 1 | $454.95 | |
| 21 | 3402-544 | SPACER, FIXED DRIVE LH | 1 | $79.95 | |
| 22 | 3402-977 | SEAL,CLUTCH HOUSING | 1 | $85.95 | |
| 23 | 3402-488 | SEAL, CLUTCH HOUSING | 1 | $54.95 | |
| 24 | 3446-003 | CLUTCH, PRI DRIVE ONE WAY | 1 | $220.95 | |
| 25 | 3402-760 | CLUTCH ASSY, SHOE | 1 | $559.95 | |
| 26 | 3446-031 | RETAINER, BEARING | 1 | $5.78 | |
| 27 | 3423-435 | SCREW | 1 | $3.02 | |
| 28 | 3402-567 | BEARING | 1 | $180.95 | |
| 29 | 3402-729 | BEARING | 1 | $61.95 | |
| 30 | 3423-353 | O- RING(D:2.4,ID:39.7) | 1 | $10.97 | |
| 31 | 3402-761 | SEAL, CLUTCH HOUSING RH | 1 | $30.95 | |
| 32 | 3423-501 | NUT (W/LOCK PATCH) | 1 | $10.97 | |
| 33 | 3402-730 | RETAINER, BEARING | 1 | $20.63 | |
| 34 | 3423-018 | SCREW, 6X12 | 1 | $2.61 |
