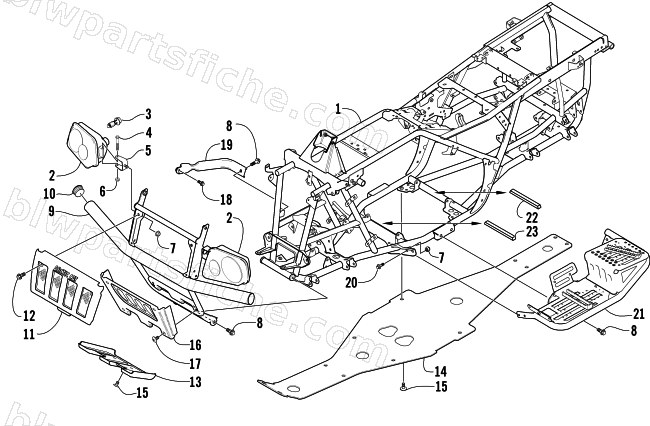

2003 Arctic Cat 500 TRV AUTOMATIC TRANSMISSION — FRAME AND RELATED PARTS
2003 500 TRV AUTOMATIC TRANSMISSION
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-920 | FRAME, MAIN-BLACK (2003 TRV/TBX) | 1 | $1,073.29 | |
| 2 | 0409-032 | HEADLIGHT,RH-ASSY | 1 | $135.95 | |
| 2 | 0409-031 | HEADLIGHT,LH-ASSY | 1 | $135.95 | |
| 3 | 0409-045 | BULB, HEADLIGHT (880) | 1 | $34.95 | |
| 4 | 8410-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE BLK | 1 | $1.50 | |
| 5 | 0406-945 | BRKT, MTG,-HEADLIGHT | 1 | $29.95 | |
| 6 | 0423-375 | NUT,FLANGE NYLOCK-M8 | 1 | $1.23 | |
| 7 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 8 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 9 | 0506-544 | BUMPER,FR-BLACK (LG CH) | 1 | $324.95 | |
| 10 | 0406-130 | CAP,BUMPER(RDR17-1420) | 1 | $5.51 | |
| 12 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 13 | 0406-834 | PLATE, SKID -FWD | 1 | $21.95 | |
| 14 | 1406-176 | PANEL,BELLY | 1 | $180.95 | |
| 15 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 16 | 1406-420 | GRILLE, LOWER | 1 | $49.95 | |
| 17 | 0423-362 | SCREW, MACH-TSTH M8-1.25 X 30 EM- BLK | 1 | $8.21 | |
| 18 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 19 | 1506-596 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 20 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 21 | 0506-941 | FOOTREST,RH-BLACK | 1 | $232.95 | |
| 21 | 0506-942 | FOOTREST,LH-BLACK | 1 | $232.95 | |
| 22 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 23 | 1506-067 | FOAM, FRAME | 1 | $3.16 |
