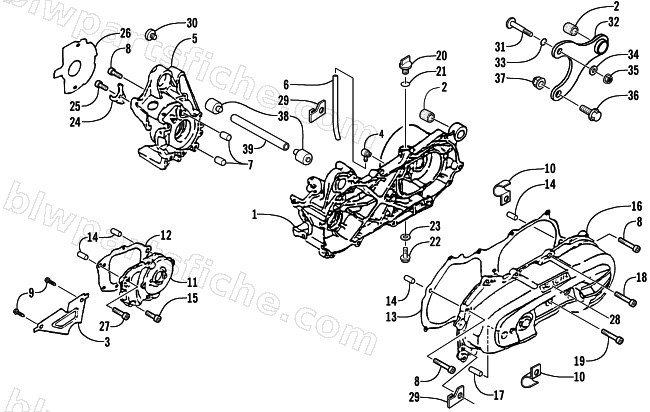

CRANKCASE ASSEMBLY

2003 90 Y-12 YOUTH ()

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3301-006	LEFT CRANKCASE	1	$279.95
2	3301-427	RUBBER BUSHING	1	$10.95
3	3301-011	PLATE L COVER	1	$16.95
4	3301-057	BREATHER HOSE HEAD	1	$3.95
5	3301-001	RIGHT CRANKCASE	1	$197.95
6	3301-480	BREATHER HOSE	1	$3.02
7	3301-365	DOWEL PIN	1	$3.95
8	3301-292	HEX SOCKET BOLT	1	$3.95
9	3301-321	TAPPING SCREW TRUSS HEAD PHILLIPS	1	$1.95
10	3301-013	CLAMP	1	$3.95
11	3301-097	MISSION COVER	1	$67.95
12	3301-098	MISSION COVER GASKET	1	$5.95
13	3301-014	CRANKCASE COVER GASKET	1	$20.95
14	3301-364	DOWEL PIN	1	$3.95
15	3301-289	HEX SOCKET BOLT	1	$2.95
16	3301-010	LEFT CRANKCASE COVER	1	$205.95
17	3301-426	SHAFT IDLER	1	$4.95
18	3301-290	1HEX SOCKET BOLT	1	$2.95
19	3301-293	HEX SOCKET BOLT	1	$3.95
20	3301-037	OIL PLUG	1	$2.95
21	3301-297	O- RING	1	$1.95
22	3301-394	HEX WASHER FACE BOLT	1	$3.95
23	3301-342	COPPER PLAIN WASHER	1	$1.95
24	3301-003	OIL SEAL BRACKET	1	$4.95
25	3301-287	HEX SOCKET BOLT	1	$1.64
26	3301-004	GENERATOR GASKET	1	$5.95
27	3301-291	HEX SOCKET BOLT	1	$2.95
28	0411-481	DECAL, DURAMATIC	1	$13.73
29	3301-012	CARBURETOR TUBE BRACKET	1	$3.95
30	3301-002	PROTECT SHROUD	1	$4.95
31	3301-198	FIX SHAFT	1	$20.63
32	3301-007	CRANKCASE BRACKET	1	$40.95
33	3301-296	O- RING	1	$1.78
34	3301-343	PLAIN WASHER	1	$0.95
35	3301-330	HEX FLANGE NUT WITH SERRATION	1	$1.37
36	3301-406	HEX WASHER FACE BOLT	1	$6.75
37	3301-332	HEX FLANGE NUT WITH SERRATION	1	$3.57
38	3301-008	BUSH	1	$20.95
39	3301-005	CRANKCASE FIX SHAFT	1	$20.95
