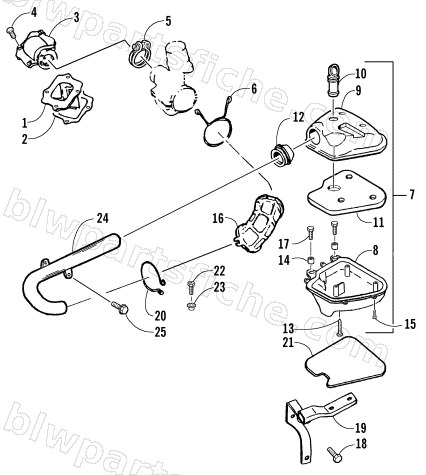

2003 Arctic Cat 90 Y-12 YOUTH () — REED VALVE AND AIR CLEANER ASSEMBLY
2003 90 Y-12 YOUTH ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-030 | REED VALVE ASS'Y | 1 | $40.95 | |
| 2 | 3301-061 | REED VALVE GASKET | 1 | $1.95 | |
| 3 | 3301-060 | INTAKE MANIFOLD(3XG) | 1 | $33.95 | |
| 4 | 3301-389 | HEX WASHER FACE BOLT | 1 | $1.95 | |
| 5 | 3301-031 | INTAKE MANIFOLD HOSE CLAMP | 1 | $6.95 | |
| 6 | 3301-375 | CLIP | 1 | $1.95 | |
| 16 | 3301-520 | AIR CLEANER JOINT | 1 | $25.95 | |
| 17 | 3301-307 | HEX BOLT | 1 | $1.95 | |
| 18 | 3301-490 | HEX WASHER FACE BOLT | 1 | $3.95 | |
| 19 | 3301-072 | AIR CLEANER BRACKET | 1 | $29.95 | |
| 20 | 3301-376 | CLIP | 1 | $4.95 | |
| 21 | 3301-068 | AIR CLEANER ISOLATION GASKET | 1 | $20.95 | |
| 22 | 3301-309 | HEX HEAD PHILLIPS BOLT | 1 | $1.95 | |
| 23 | 3301-326 | HEX FLANGE NUT WITH SERRATION | 1 | $1.95 | |
| 24 | 3301-071 | AIR DUCT | 1 | $48.95 | |
| 25 | 3301-484 | HEX WASHER FACE BOLT | 1 | $6.34 |
