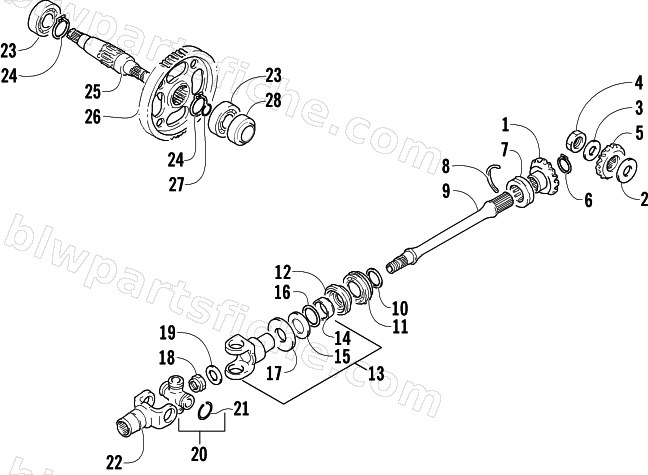

SECONDARY GEAR/OUTPUT SHAFT ASSEMBLY
2004 250 2X4
Scroll / pinch to zoom · drag to pan · double-click resets
| # |
Part No. |
Description |
Qty |
Price |
|
| 23 |
3402-219 |
BEARING,M25X62X17 |
1 |
$58.95 |
|
| 24 |
3423-321 |
CIRCLIP,FASTENER |
1 |
$5.37 |
|
| 25 |
3446-176 |
SHAFT,R FINAL DRIVEN |
1 |
$316.95 |
|
| 26 |
3446-175 |
GEAR,R FINAL DRIVEN |
1 |
$378.95 |
|
| 27 |
3423-281 |
RING,SNAP,M24 |
1 |
$3.95 |
|
| 28 |
3402-072 |
OIL SEAL ,M34X52X9 |
1 |
$23.39 |
|
