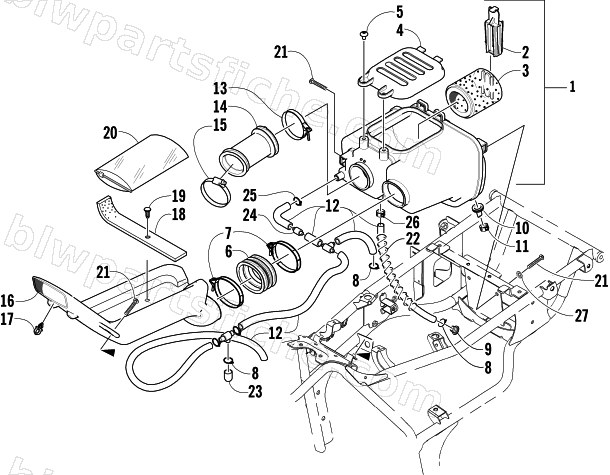

AIR INTAKE ASSEMBLY
2004 250 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3570-001 | AIR CLEANER HSNG-ASSY | 1 | $283.95 | |
| 2 | 3402-330 | SLIDER | 1 | $20.63 | |
| 3 | 0470-421 | FILTER, AIR (PT2465) | 1 | $47.95 | |
| 4 | 3402-331 | CAP | 1 | $47.95 | |
| 5 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 6 | 3423-329 | JOINT, COUPLER | 1 | $29.95 | |
| 7 | 3423-311 | CLAMP | 1 | $23.39 | |
| 8 | 3423-313 | CLIP,M14 | 1 | $5.37 | |
| 9 | 0423-127 | PLUG,DRAIN | 1 | $2.88 | |
| 10 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 11 | 0423-071 | CLAMP,SPRING(5079) | 1 | $1.95 | |
| 12 | 3470-004 | TUBE ASSY,BREATHER | 1 | $220.95 | |
| 13 | 3402-236 | CLAMP,M62 | 1 | $17.87 | |
| 14 | 0470-347 | BOOT, AIR CLEANER | 1 | $30.95 | |
| 15 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 16 | 0570-062 | SNORKEL,ASSY | 1 | $72.95 | |
| 17 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 18 | 0406-379 | STRAP,TOOL | 1 | $10.95 | |
| 19 | 0606-586 | PLUG,HOLE-.250 PANEL HOLE-FLT HD STYLE | 1 | $3.71 | |
| 20 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 21 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 22 | 0423-128 | SPRING,VENT TUBE | 1 | $5.65 | |
| 23 | 3402-334 | PLUG, BREATHER | 1 | $20.95 | |
| 24 | 3470-002 | CHECK VALVE | 1 | $45.95 | |
| 25 | 3423-424 | CLIP, AIRBOX | 1 | $5.78 | |
| 26 | 0423-047 | CLAMP,HOSE- SPRING .675" ID X .38" | 1 | $1.95 | |
| 27 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 |
