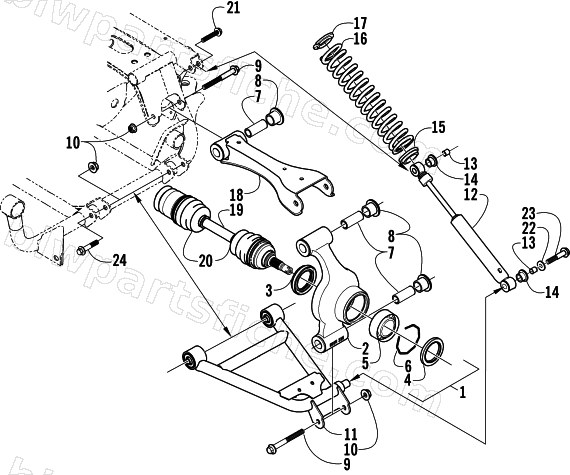

REAR SUSPENSION ASSEMBLY
2004 300 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0504-375 | KNUCKLE, REAR RH-ASSY | 1 | $272.95 | |
| 1 | 0504-380 | KNUCKLE,REAR LH-ASSY | 1 | $272.95 | |
| 3 | 0402-069 | SEAL,40MMX58MMX7MM-3 LIP | 1 | $5.95 | |
| 4 | 0402-089 | SEAL,40MMX55MMX6MM-DBL LIP(R/B 2402-611) | 1 | $4.95 | |
| 5 | 0402-275 | BEARING, WHEEL | 1 | $58.95 | |
| 6 | 0423-034 | CLIP,BEARING | 1 | $5.51 | |
| 7 | 0403-437 | COLLAR,SUSPENSION BUSHING-REAR K | 1 | $6.89 | |
| 8 | 0403-283 | BUSHING,REAR SUSPENSION | 1 | $2.75 | |
| 9 | 8409-000 | SCREW, CAP-HFH M10-1.25 X100 Z&Y CL10.9 | 1 | $1.37 | |
| 10 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 11 | 0504-030 | A-ARM,RR RH LWR-FAB | 1 | $151.95 | |
| 11 | 0504-031 | A-ARM,RR LH LWR-FAB | 1 | $151.95 | |
| 12 | 0404-014 | SHOCK ABSORBER,RR SUSP | 1 | $122.95 | |
| 13 | 0403-028 | SLEEVE,SHOCK | 1 | $3.02 | |
| 14 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 15 | 0403-104 | RETAINER,SPRING-LOWER | 1 | $13.95 | |
| 16 | 0403-002 | SPRING, COIL - BLACK | 1 | $69.95 | |
| 16 | 0403-123 | SPRING, COIL - PLATINUM | 1 | $24.95 | |
| 17 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 18 | 0504-044 | ARM, REAR UPPER - BLACK | 1 | $59.95 | |
| 19 | 1502-531 | AXLE,DRIVE-REAR | 1 | $501.95 | |
| 20 | 1436-207 | KIT,CV BOOT-UNIVERSAL | 1 | $73.95 | |
| 21 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 22 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 23 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 24 | 8409-060 | SCREW,CAP-HFH M10X1.25X60 CL10.9 Z&Y | 1 | $3.71 |
