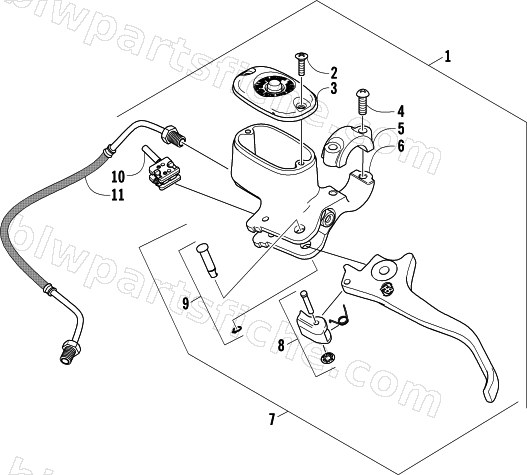

2004 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS MRP — HYDRAULIC HAND BRAKE ASSEMBLY
2004 400 AUTOMATIC TRANSMISSION 4X4 FIS MRP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-765 | KIT,MASTER CYLINDER FULL ASSY(BLK FLARE) | 1 | $501.95 | |
| 2 | 0502-566 | KIT, RESERVOIR COVER SCREWS | 1 | $6.47 | |
| 3 | 0502-565 | KIT, RESERVOIR COVER SUB-ASSEMBLY | 1 | $79.95 | |
| 4 | 0502-568 | KIT, CLAMP SCREWS | 1 | $20.63 | |
| 5 | 0502-567 | KIT, MASTER CYLINDER CLAMP | 1 | $43.95 | |
| 6 | 1502-766 | KIT,REBUILD MASTER CYLINDER(BLK FLARE) | 1 | $199.95 | |
| 7 | 0502-634 | KIT,LEVER AND PARK LEVER SUB-ASSEMBLY | 1 | $118.95 | |
| 8 | 1502-905 | KIT,PARK LEVER SUB-ASSY | 1 | $20.63 | |
| 9 | 0502-580 | KIT,SNAP RING | 1 | $20.63 | |
| 10 | 0502-564 | KIT, BRAKE LIGHT SWITCH | 1 | $58.95 | |
| 11 | 0402-962 | HOSE,BRAKE-MASTER CYL | 1 | $79.95 |
