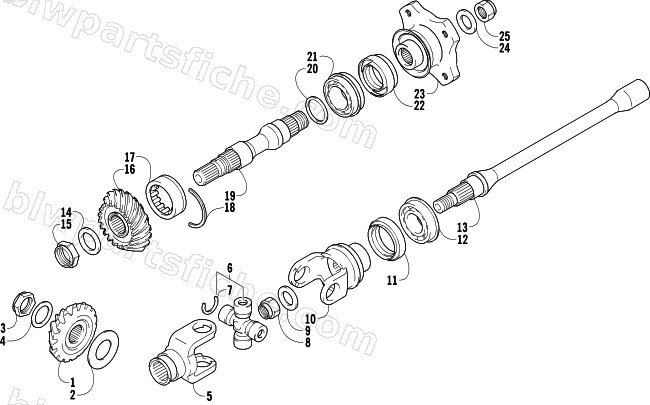

2004 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS MRP — SECONDARY DRIVE ASSEMBLY
2004 400 AUTOMATIC TRANSMISSION 4X4 FIS MRP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-637 | GEAR, SEC DRIVE BEVEL | 1 | $292.95 | |
| 2 | 3423-549 | SHIM SET, SEC DRIVE BEVEL | 1 | $163.95 | |
| 3 | 3423-023 | NUT 20MM | 1 | $4.54 | |
| 4 | 3005-372 | WASHER, PISTON PIN | 1 | $3.16 | |
| 5 | 3446-327 | YOKE,PROP SHAFT JOINT | 1 | $196.95 | |
| 6 | 3402-562 | JOINT SET, UNIVERSAL | 1 | $73.95 | |
| 7 | 3423-479 | CIRCLIP | 1 | $5.92 | |
| 8 | 3423-025 | NUT,16MM | 1 | $4.95 | |
| 9 | 3423-028 | WASHER,16MM | 1 | $5.95 | |
| 10 | 3402-742 | YOKE, FR DRIVE OUTPUT | 1 | $235.95 | |
| 11 | 3402-072 | OIL SEAL ,M34X52X9 | 1 | $23.39 | |
| 12 | 3402-558 | BEARING | 1 | $90.95 | |
| 13 | 3402-559 | SHAFT, SEC DRIVEN OUTPUT FR | 1 | $350.95 | |
| 14 | 3423-137 | WASHER, SEC DRIVEN GEAR-M22X36 | 1 | $6.34 | |
| 15 | 3423-136 | NUT, SEC DRIVEN GEAR,22MM | 1 | $19.25 | |
| 16 | 3402-638 | GEAR, SEC DRIVEN BEVEL | 1 | $398.95 | |
| 17 | 3402-515 | BEARING, SEC DRIVEN GEAR,M (30X50X17) | 1 | $79.95 | |
| 18 | 3423-072 | C RING,M50 | 1 | $5.78 | |
| 19 | 3402-639 | SHAFT, SEC DRIVEN OUTPUT RR | 1 | $350.95 | |
| 20 | 3402-017 | SHIM,25MM | 1 | $5.92 | |
| 20 | 3402-018 | SHIM,25MM | 1 | $5.92 | |
| 20 | 3402-019 | SHIM,25MM | 1 | $5.92 | |
| 20 | 3402-020 | SHIM,25MM | 1 | $5.92 | |
| 20 | 3403-217 | SHIM,25X34X0.8 | 1 | $5.92 | |
| 20 | 3402-022 | SHIM,25MM | 1 | $5.95 | |
| 20 | 3402-023 | SHIM,25MM | 1 | $5.92 | |
| 20 | 3402-024 | SHIM,25MM | 1 | $5.92 | |
| 20 | 3423-421 | WASHER, SHIFT SHAFT (M25X34X1.0) | 1 | $5.51 | |
| 20 | 3402-028 | SHIM,25MM | 1 | $6.20 | |
| 20 | 3402-029 | SHIM,25MM | 1 | $6.47 | |
| 20 | 3402-030 | SHIM,25MM | 1 | $6.47 | |
| 20 | 3402-031 | SHIM,25MM | 1 | $6.47 | |
| 21 | 3403-210 | BEARING,REAR OUTPUT SHAFT RR | 1 | $106.95 | |
| 23 | 3402-514 | FLANGE, RR OUTPUT JOINT | 1 | $212.95 |
