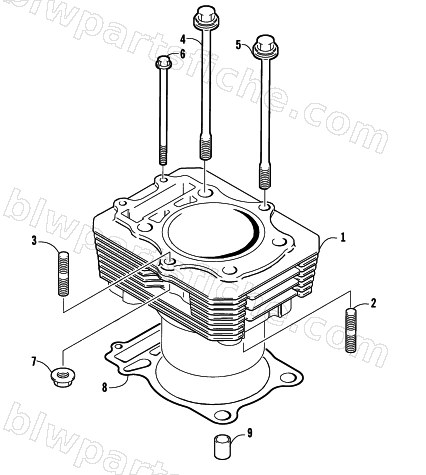

CYLINDER ASSEMBLY
2004 400 AUTOMATIC TRANSMISSION 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-238 | CYLINDER (375 AUTO) | 1 | $969.95 | |
| 2 | 3007-465 | BOLT,STUD | 1 | $2.75 | |
| 3 | 3004-779 | STUD,8MM | 1 | $12.35 | |
| 4 | 3423-431 | BOLT, M10 X 180 | 1 | $17.87 | |
| 5 | 3423-432 | BOLT, CYL HEAD L170 | 1 | $16.49 | |
| 6 | 3423-427 | BOLT, M6 X 115 | 1 | $5.51 | |
| 7 | 3007-373 | NUT | 1 | $3.16 | |
| 8 | 3402-579 | GASKET, CYLINDER | 1 | $33.95 | |
| 9 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 |
