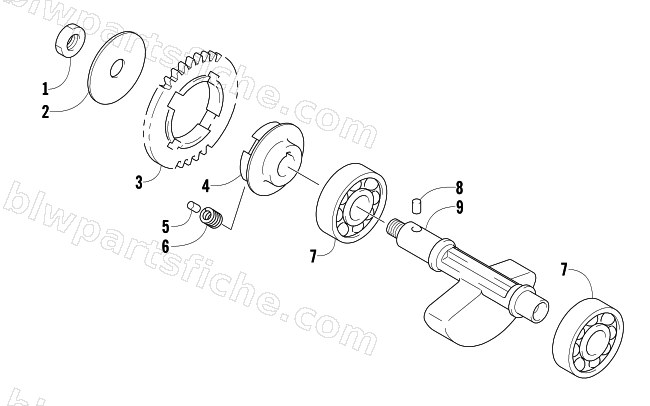

2004 Arctic Cat 400 DVX — CRANK BALANCER ASSEMBLY
2004 400 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3423-666 | NUT (M12) | 1 | $2.95 | |
| 2 | 3423-698 | WASHER (12.2X47X1.6) | 1 | $5.51 | |
| 3 | 3406-137 | GEAR, DRIVEN | 1 | $196.95 | |
| 4 | 3406-138 | RACE, DRIVEN GEAR INNER | 1 | $114.95 | |
| 5 | 3423-106 | PIN, CRK BAL DRIVEN GEAR,M4.5X9.5 | 1 | $6.34 | |
| 6 | 3402-090 | SPRING,COMPRESSION,M9 | 1 | $5.92 | |
| 7 | 3402-900 | BEARING | 1 | $47.95 | |
| 8 | 3423-047 | PIN,M5X8 | 1 | $3.95 | |
| 9 | 3402-925 | BALANCER, CRANK | 1 | $181.95 |
