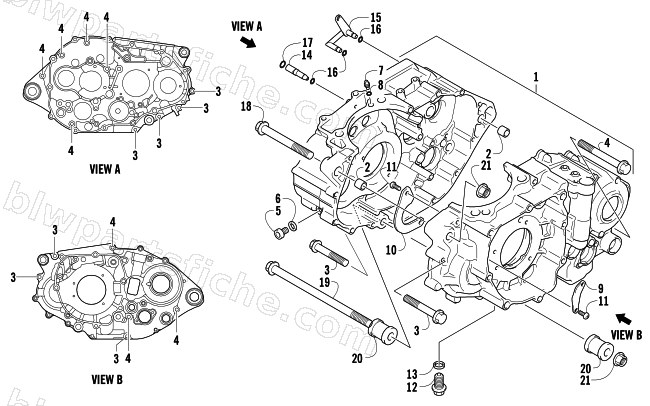

CRANKCASE ASSEMBLY
2004 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3502-009 | CRANKCASE SET | 1 | $1,327.95 | |
| 2 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 3 | 3007-496 | BOLT,CYL HEAD | 1 | $3.16 | |
| 4 | 3423-097 | BOLT, CLUTCH COVER-M6X70 | 1 | $4.54 | |
| 5 | 3423-706 | PLUG, OIL GALLERY | 1 | $10.97 | |
| 6 | 3402-894 | GASKET (10X14X3.6) | 1 | $4.13 | |
| 7 | 3402-918 | JET, OIL GALLERY CYLINDER | 1 | $26.95 | |
| 8 | 3423-051 | O RING | 1 | $2.75 | |
| 9 | 3402-919 | SEPARATOR, OIL NO.1 | 1 | $5.37 | |
| 10 | 3402-920 | SEPARATOR, OIL NO.2 | 1 | $10.97 | |
| 11 | 3423-435 | SCREW | 1 | $3.02 | |
| 12 | 3402-897 | PLUG, OIL DRAIN | 1 | $10.97 | |
| 13 | 3402-011 | GASKET,OIL DRAIN PLUG- M12.1X16.2X3.7 | 1 | $3.44 | |
| 14 | 3446-391 | PIPE, OIL INNER NO.1 | 1 | $42.95 | |
| 15 | 3446-356 | PIPE COMP,T/M OIL INNER NO.2 | 1 | $58.95 | |
| 16 | 3423-709 | O RING (D:1.9,ID:4.8) | 1 | $4.95 | |
| 17 | 3423-710 | O RING (D:1.9,ID:6.8) | 1 | $2.88 | |
| 18 | 3005-514 | BOLT,(10X100) | 1 | $7.95 | |
| 19 | 3423-391 | BOLT, (M10X180) | 1 | $10.97 | |
| 20 | 3423-737 | SPACER, ENGINE MOUNTING (L:30) | 1 | $33.95 | |
| 21 | 3423-863 | NUT | 1 | $4.54 |
