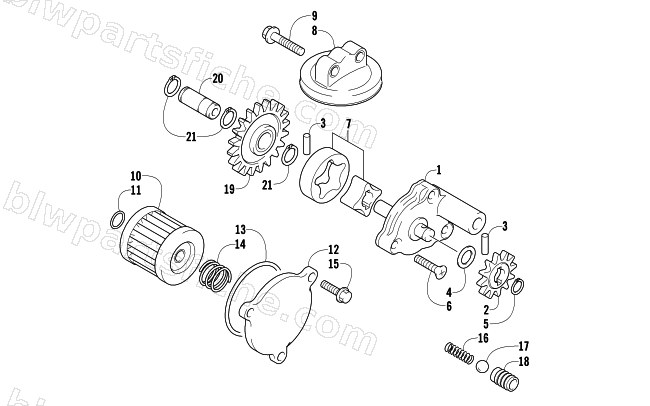

OIL PUMP ASSEMBLY
2004 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3502-020 | PUMP ASSY,ENGINE OIL,NO.1 | 1 | $275.95 | |
| 2 | 3402-881 | GEAR,OIL PUMP DRIVEN | 1 | $69.95 | |
| 3 | 3423-046 | PIN ,M4X15.8 | 1 | $3.30 | |
| 4 | 3423-443 | SHIM, 10 X 18 X 0.5 | 1 | $2.95 | |
| 5 | 3423-871 | CIRCLIP | 1 | $3.71 | |
| 6 | 3007-566 | SCREW | 1 | $1.95 | |
| 7 | 3502-022 | ROTOR SET,OIL PUMP,NO.2 | 1 | $82.95 | |
| 8 | 3502-023 | STRAINER COMP,OIL PUMP NO.2 | 1 | $42.95 | |
| 9 | 3007-380 | BOLT | 1 | $3.16 | |
| 10 | 3470-008 | FILTER, OIL | 1 | $15.11 | |
| 11 | 3423-270 | O RING,D:1.9,ID:13 | 1 | $4.95 | |
| 12 | 3402-885 | CAP,OIL FILTER | 1 | $58.95 | |
| 13 | 3423-277 | O RING,D:2.4,ID:52.6 | 1 | $12.35 | |
| 14 | 3402-238 | SPRING,COMPRESSIOM,M18 | 1 | $2.61 | |
| 15 | 3423-898 | BOLT,M6X16 | 1 | $3.02 | |
| 16 | 3402-917 | SPRING | 1 | $10.95 | |
| 17 | 3402-891 | BALL | 1 | $4.13 | |
| 18 | 3402-883 | SEAT,OIL CHECK VALVE | 1 | $56.95 | |
| 19 | 3402-935 | GEAR, OIL PUMP IDLE | 1 | $58.95 | |
| 20 | 3402-936 | SHAFT | 1 | $37.95 | |
| 21 | 3423-876 | CIRCLIP,REV SHIFT CAM FASTENER | 1 | $3.44 |
