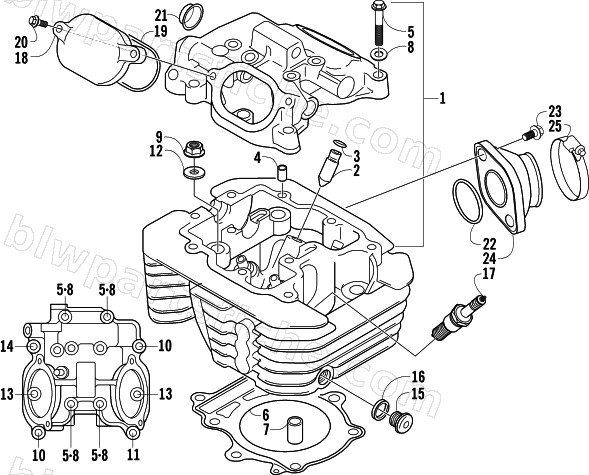

2004 Arctic Cat 400 MANUAL TRANSMISSION 4X4 FIS MRP — CYLINDER HEAD ASSEMBLY
2004 400 MANUAL TRANSMISSION 4X4 FIS MRP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3402-048 | PLUG,16MM | 1 | $10.97 | |
| 1 | 3403-237 | HEAD ASSY.,CYLINDER | 1 | $1,285.95 | |
| 2 | 3402-099 | GUIDE, VALVE | 1 | $52.95 | |
| 3 | 3423-068 | CIRCLIP,M10 | 1 | $3.30 | |
| 4 | 3423-043 | PIN,ALIGNMENT,8MM | 1 | $9.59 | |
| 5 | 3423-006 | BOLT, 6X55 | 1 | $3.02 | |
| 6 | 3402-577 | GASKET, CYLINDER HEAD | 1 | $82.95 | |
| 7 | 3423-449 | PIN | 1 | $5.92 | |
| 8 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 9 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 10 | 3007-505 | BOLT,OIL PAN | 1 | $3.16 | |
| 11 | 3423-429 | BOLT, M6 X 39 | 1 | $3.02 | |
| 12 | 3423-890 | WASHER,10.5X22X23 | 1 | $3.02 | |
| 13 | 3007-380 | BOLT | 1 | $3.16 | |
| 14 | 3007-395 | BOLT | 1 | $3.44 | |
| 15 | 3423-453 | PLUG | 1 | $20.63 | |
| 16 | 3402-011 | GASKET,OIL DRAIN PLUG- M12.1X16.2X3.7 | 1 | $3.44 | |
| 17 | 0217-708 | SPARK PLUG, NGK-CR7E | 1 | $10.97 | |
| 18 | 3402-100 | CAP, INSPECTION | 1 | $48.95 | |
| 19 | 3402-101 | O RING, INSPECTION CAP | 1 | $12.35 | |
| 20 | 3007-409 | BOLT | 1 | $3.16 | |
| 21 | 3402-035 | PLUG, CYLINDER HEAD,25MM | 1 | $17.87 | |
| 22 | 3423-353 | O- RING(D:2.4,ID:39.7) | 1 | $10.97 | |
| 23 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 24 | 0570-076 | MANIFOLD,CARBURETOR | 1 | $104.95 | |
| 25 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 |
