2004 Arctic Cat 400 MANUAL TRANSMISSION 4X4 FIS MRP — GEAR SHIFTING ASSEMBLY

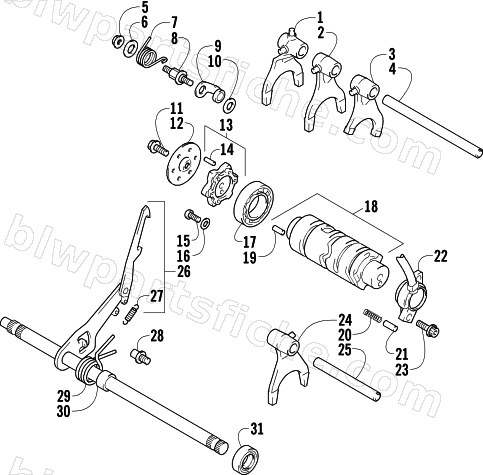

2004 400 MANUAL TRANSMISSION 4X4 FIS MRP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-306 | FORK, GEAR SHIFT REVERSE | 1 | $126.95 | |
| 2 | 3446-155 | FORK,GEAR SHIFT,NO.1 | 1 | $122.95 | |
| 3 | 3446-156 | FORK,GEAR SHIFT NO.2 | 1 | $126.95 | |
| 4 | 3402-643 | SHAFT, GEAR SHIFT FORK | 1 | $35.95 | |
| 5 | 3007-373 | NUT | 1 | $3.16 | |
| 6 | 3423-142 | WASHER, CAM STOPPER ARM SUPPORT-M6X18 | 1 | $2.06 | |
| 7 | 3446-282 | SPRING,GEAR SHIFT CAM STOPPER | 1 | $26.95 | |
| 8 | 3446-048 | SUPPORT, CAM STOPPER ARM | 1 | $32.95 | |
| 9 | 3402-746 | STOPPER, SHIFT CAM | 1 | $26.95 | |
| 10 | 3423-141 | WASHER, GEAR SHIFT CAM STOPPER-M6X14 | 1 | $3.95 | |
| 11 | 3423-884 | BOLT,CTUTCH RELEASE ARM-M6X20 | 1 | $2.61 | |
| 12 | 3446-309 | GUIDE, GEAR SHIFT | 1 | $20.63 | |
| 13 | 3446-049 | PLATE, GEAR SHIFT CAM | 1 | $67.95 | |
| 14 | 3423-045 | PIN ,M4X13.8 | 1 | $3.30 | |
| 15 | 3423-370 | SCREW,6MM | 1 | $2.61 | |
| 16 | 3423-135 | RETAINER, CNTR SHAFT BRG-M6X16 | 1 | $5.92 | |
| 17 | 3402-051 | BEARING,M25 | 1 | $62.95 | |
| 18 | 3446-308 | CAM, GEAR SHIFT | 1 | $255.95 | |
| 19 | 3423-114 | MM (DOWEL) | 1 | $2.06 | |
| 20 | 3402-087 | SPRING,COMPRESSION,M4 | 1 | $3.30 | |
| 21 | 3423-044 | PIN,CAM GEAR,5MM | 1 | $5.37 | |
| 22 | 3446-313 | BASE ASSY, NEUTRAL SWITCH | 1 | $196.95 | |
| 23 | 3423-418 | BOLT, BASE ASSY | 1 | $3.30 | |
| 24 | 3446-157 | FORK,GEAR SHIFT NO.3 | 1 | $122.95 | |
| 25 | 3446-307 | SHAFT, GEAR FORK NO.2 | 1 | $58.95 | |
| 26 | 3446-310 | SHAFT, GEAR SHIFT | 1 | $169.95 | |
| 27 | 3402-093 | SPRING,PULL,M6 | 1 | $12.35 | |
| 28 | 3446-056 | STOPPER, GEAR SHIFT ARM | 1 | $12.35 | |
| 29 | 3402-094 | SPRING,TORSION,M26 | 1 | $12.35 | |
| 30 | 3446-054 | SPACER, GEAR SHIFT SHAFT | 1 | $20.63 | |
| 31 | 3402-068 | OIL SEAL,M13X22X6 | 1 | $17.87 |
