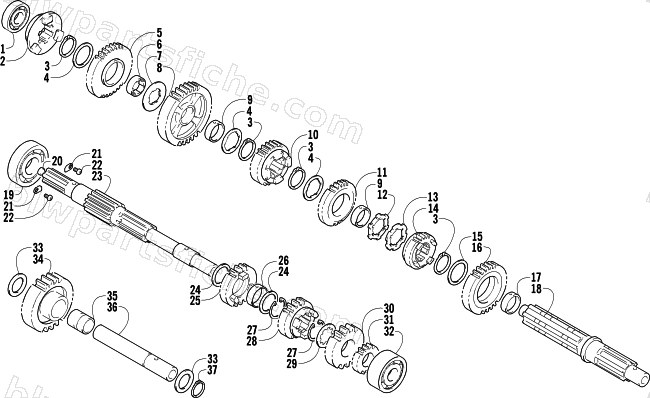

TRANSMISSION ASSEMBLY
2004 400 MANUAL TRANSMISSION 4X4 FIS MRP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-218 | BALL BEARING,M17X35X10 | 1 | $76.95 | |
| 2 | 3446-297 | DOG, REVERSE | 1 | $126.95 | |
| 3 | 3423-066 | CIRCLIP,M25 | 1 | $6.47 | |
| 4 | 3423-036 | WASHER,25MM | 1 | $4.54 | |
| 5 | 3446-296 | GEAR, REVERSE DRIVEN (NT:34) | 1 | $164.95 | |
| 6 | 3446-145 | BUSHING, REVERSE DRIVEN GEAR | 1 | $32.95 | |
| 7 | 3423-263 | WASHER,LOCK,25MM | 1 | $4.54 | |
| 8 | 3446-141 | GEAR,1ST DRIVEN | 1 | $169.95 | |
| 9 | 3446-273 | BUSHING, DRIVEN, GEAR | 1 | $33.95 | |
| 10 | 3446-146 | GEAR,4TH DRIVEN | 1 | $196.95 | |
| 11 | 3446-143 | GEAR,3RD DRIVEN | 1 | $164.95 | |
| 12 | 3423-266 | WASHER,LOCK,25MM | 1 | $2.61 | |
| 13 | 3423-262 | WASHER,LOCK,25MM | 1 | $4.54 | |
| 14 | 3446-147 | GEAR,5TH DRIVEN | 1 | $151.95 | |
| 15 | 3423-317 | WASHER,M25X35 | 1 | $3.02 | |
| 16 | 3446-142 | GEAR,2ND DRIVEN | 1 | $164.95 | |
| 17 | 3402-230 | BUSHING,M25X29X8 | 1 | $30.95 | |
| 18 | 3402-775 | DRIVESHAFT | 1 | $421.95 | |
| 19 | 0691-374 | BALL BEARING ,M20X50X14 | 1 | $36.95 | |
| 20 | 3402-033 | PLUG, M10X4 | 1 | $4.95 | |
| 21 | 3446-031 | RETAINER, BEARING | 1 | $5.78 | |
| 22 | 3423-370 | SCREW,6MM | 1 | $2.61 | |
| 23 | 3446-430 | COUNTERSHAFT (NT:21) | 1 | $260.95 | |
| 24 | 3402-210 | WASHER,M22X30X1.0 | 1 | $2.95 | |
| 25 | 3446-139 | GEAR,4TH DRIVE | 1 | $169.95 | |
| 26 | 3402-229 | BUSHING,M22 | 1 | $30.95 | |
| 27 | 3423-279 | CIRCLIP,M22 | 1 | $9.59 | |
| 28 | 3446-138 | GEAR,3RD DRIVE | 1 | $164.95 | |
| 29 | 3423-791 | WASHER | 1 | $3.57 | |
| 30 | 3446-140 | GEAR,5TH DRIVE | 1 | $164.95 | |
| 31 | 3446-137 | GEAR,2ND DRIVE | 1 | $164.95 | |
| 32 | 3402-224 | BEARING,M17X40X17.5 | 1 | $140.95 | |
| 33 | 3402-209 | WASHER,M17X28X1.0 | 1 | $3.71 | |
| 34 | 3446-149 | GEAR,REVERSE IDLE | 1 | $169.95 | |
| 35 | 3402-228 | BUSHING,M17 | 1 | $20.63 | |
| 36 | 3446-298 | SHAFT, REVERSE IDLE | 1 | $94.95 | |
| 37 | 3423-518 | CIRCLIP | 1 | $3.71 |
