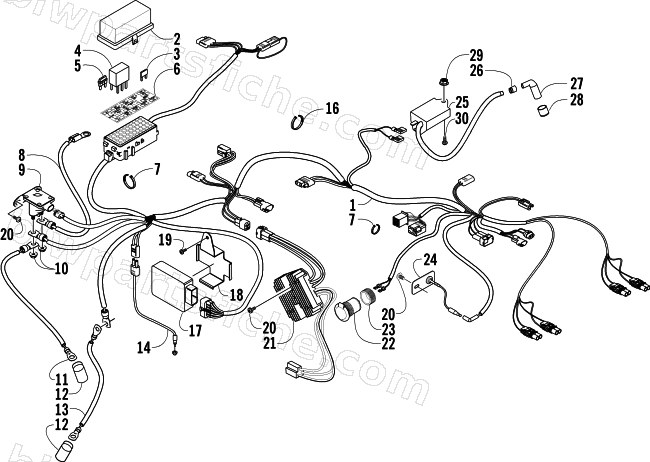

2004 Arctic Cat 400 MANUAL TRANSMISSION 4X4 FIS MRP — WIRING HARNESS ASSEMBLY
2004 400 MANUAL TRANSMISSION 4X4 FIS MRP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-116 | HARNESS,MAIN-376M | 1 | $865.95 | |
| 2 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 3 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 4 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 5 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 5 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 5 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 6 | 0411-585 | DECAL,POWER DISTRIBUTION MODULE | 1 | $42.95 | |
| 7 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 8 | 0445-032 | CABLE,RELAY-STR MTR (RED) | 1 | $32.95 | |
| 9 | 0437-102 | KIT,SOLENOID-W/ MOUNT | 1 | $49.95 | |
| 10 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 11 | 0445-052 | CABLE,BATTERY-RELAY | 1 | $24.95 | |
| 12 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 13 | 0445-037 | CABLE,BATTERY/CHASSIS | 1 | $29.95 | |
| 14 | 0409-009 | SWITCH,BRAKE-ASSY | 1 | $82.95 | |
| 15 | 0402-991 | RETAINER,BRAKE SWITCH | 1 | $6.75 | |
| 16 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 17 | 3402-785 | CDI UNIT | 1 | $865.95 | |
| 18 | 0506-985 | BRACKET, CDI - BLACK | 1 | $15.11 | |
| 19 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 20 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 21 | 3402-682 | RECTIFIER-ASSY | 1 | $454.95 | |
| 22 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 23 | 0445-034 | NUT, RETAINER-12V ACC PLUG | 1 | $0.40 | |
| 24 | 0530-125 | KIT,FAN DIODE | 1 | $17.87 | |
| 25 | 3430-055 | COIL ASSY, IGNITION | 1 | $180.95 | |
| 26 | 3430-009 | SEAL, HIGH TENSION CORD | 1 | $10.97 | |
| 27 | 3430-007 | CAP ASSY, SPARK PLUG | 1 | $23.39 | |
| 28 | 3430-008 | SEAL SPARK PLUG | 1 | $12.35 | |
| 29 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 30 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 |
