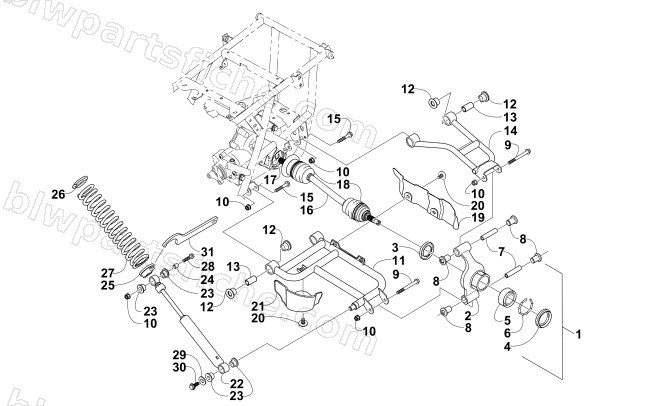

REAR SUSPENSION ASSEMBLY
2004 500 AUTOMATIC TRANSMISSION 4X4 FIS MRP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0504-382 | KNUCKLE,REAR RH-ASSY | 1 | $272.95 | |
| 1 | 0504-380 | KNUCKLE,REAR LH-ASSY | 1 | $272.95 | |
| 2 | 0504-297 | R/B 0504-382 | 1 | $135.95 | |
| 2 | 0504-225 | R/B 0504-380 | 1 | $110.95 | |
| 3 | 0402-069 | SEAL,40MMX58MMX7MM-3 LIP | 1 | $5.95 | |
| 4 | 0402-089 | SEAL,40MMX55MMX6MM-DBL LIP(R/B 2402-611) | 1 | $4.95 | |
| 5 | 0402-275 | BEARING, WHEEL | 1 | $58.95 | |
| 6 | 0423-034 | CLIP,BEARING | 1 | $5.51 | |
| 7 | 0403-437 | COLLAR,SUSPENSION BUSHING-REAR K | 1 | $6.89 | |
| 8 | 0403-283 | BUSHING,REAR SUSPENSION | 1 | $2.75 | |
| 9 | 8409-000 | SCREW, CAP-HFH M10-1.25 X100 Z&Y CL10.9 | 1 | $1.37 | |
| 10 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 11 | 0504-438 | A-ARM,REAR LOWER RH ASSEMBLY BLACK | 1 | $158.95 | |
| 11 | 0504-573 | A-ARM,REAR LOWER-LH-ASSY (BLACK) | 1 | $227.95 | |
| 12 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 13 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 14 | 0504-318 | A-ARM,REAR UPPER RH-ASSY | 1 | $148.95 | |
| 14 | 0504-583 | A-ARM,REAR UPPER-LH-ASSY (BLACK) | 1 | $148.95 | |
| 15 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 16 | 1502-442 | HALFSHAFT | 1 | $454.95 | |
| 17 | 1441-816 | CLIP,RETAINING-IB (22X21) | 1 | $0.95 | |
| 18 | 1436-207 | KIT,CV BOOT-UNIVERSAL | 1 | $73.95 | |
| 19 | 1406-068 | GUARD,BOOT-REAR-RH (BLACK) | 1 | $37.95 | |
| 19 | 1406-069 | GUARD,BOOT-REAR-LH (BLACK) | 1 | $37.95 | |
| 20 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 21 | 1406-071 | GUARD,BOOT-REAR-RH (#2) | 1 | $94.95 | |
| 21 | 1406-072 | GUARD,BOOT-REAR-LH (#2) | 1 | $82.95 | |
| 22 | 0404-072 | SHOCK, REAR-ASSY (UB) | 1 | $114.95 | |
| 23 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 24 | 0403-028 | SLEEVE,SHOCK | 1 | $3.02 | |
| 25 | 0404-496 | ADJUSTER,CAM-SPRING | 1 | $20.63 | |
| 26 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 27 | 0404-065 | SPRING,COIL-BLACK | 1 | $156.95 | |
| 27 | 0404-074 | SPRING,COIL-PLATINUM (UB) | 1 | $156.95 | |
| 28 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 29 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 30 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 31 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 |
