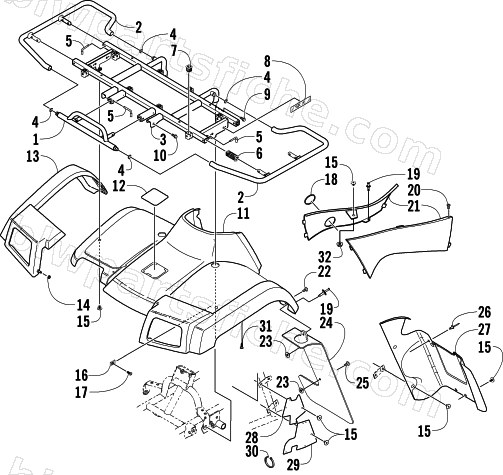

2004 Arctic Cat 500 AUTOMATIC TRANSMISSION 4X4 TRV — FRONT BODY PANEL ASSEMBLY
2004 500 AUTOMATIC TRANSMISSION 4X4 TRV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0541-133 | RACK,FR CENTER-BLACK | 1 | $90.95 | |
| 2 | 0541-134 | RACK,FR SIDE-BLACK | 1 | $69.95 | |
| 3 | 0541-135 | RACK,FR FRAME-BLACK | 1 | $283.95 | |
| 4 | 0623-903 | O-RING, OIL LEVEL ADAPTER | 1 | $1.23 | |
| 5 | 0541-447 | PINS,SPEEDRACK-SS-ASSY | 1 | $16.49 | |
| 6 | 2406-014 | BUSHING,RACK FRAME | 1 | $2.47 | |
| 7 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 8 | 0411-646 | DECAL,REFLECTOR-YELLOW | 1 | $17.87 | |
| 9 | 0423-360 | SCREW, CAP HFH M8-1.25 X 12 EM- BLK | 1 | $10.95 | |
| 10 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 11 | 0506-584 | PANEL,FENDER FR-ROUTED (GRN) | 1 | $628.95 | |
| 11 | 0506-616 | PANEL,FENDER,FR-ROUTED (RD) | 1 | $405.95 | |
| 11 | 0506-721 | PANEL,FENDER-FR.LIME GREEN | 1 | $647.95 | |
| 12 | 1406-141 | COVER,ACCESS-MARSH GREEN (W/LOGO) | 1 | $21.95 | |
| 12 | 1406-142 | COVER,ACCESS-RED (W/LOGO) | 1 | $20.95 | |
| 12 | 1406-041 | COVER,ACCESS-LIME GREEN (W/LOGO) | 1 | $20.95 | |
| 13 | 1506-158 | FLARE, FRONT RH | 1 | $79.95 | |
| 13 | 1506-159 | FLARE, FRONT LH | 1 | $90.95 | |
| 14 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 15 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 16 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 17 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 18 | 0470-404 | GROMMET,GAS VALVE KNOB | 1 | $2.95 | |
| 19 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 20 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 21 | 0506-549 | PANEL, SIDE RH-ROUTED (GRN) | 1 | $317.95 | |
| 21 | 0506-673 | PANEL, SIDE-LH-ROUTED GRN | 1 | $126.95 | |
| 21 | 0506-243 | PANEL,SIDE-LH ROUTED - RED | 1 | $36.95 | |
| 21 | 0506-722 | PANEL,SIDE-RH-ROUTED-CAT GREEN | 1 | $79.95 | |
| 21 | 0506-723 | PANEL,SIDE-LH-ROUTED-CAT GREEN | 1 | $32.95 | |
| 22 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 23 | 0423-077 | NUT,T-W/TEETH (6MM) | 1 | $3.44 | |
| 24 | 1506-194 | EXTENSION, FLARE-FRONT | 1 | $32.95 | |
| 25 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 26 | 0423-046 | RIVET, PLASTIC - DH - .246X.157-.394 BLK | 1 | $1.09 | |
| 27 | 0406-941 | PANEL, KICK-FR-RH-BLACK | 1 | $79.95 | |
| 27 | 1506-200 | PANEL, KICK-FRONT-LH ROUTED | 1 | $64.95 | |
| 28 | 1406-063 | PANEL,FENDER-RH-INNER | 1 | $54.95 | |
| 28 | 1406-064 | PANEL,FENDER-LH-INNER | 1 | $13.95 | |
| 29 | 1406-006 | PANEL, FENDER- INNER | 1 | $13.95 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 31 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 32 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 |
