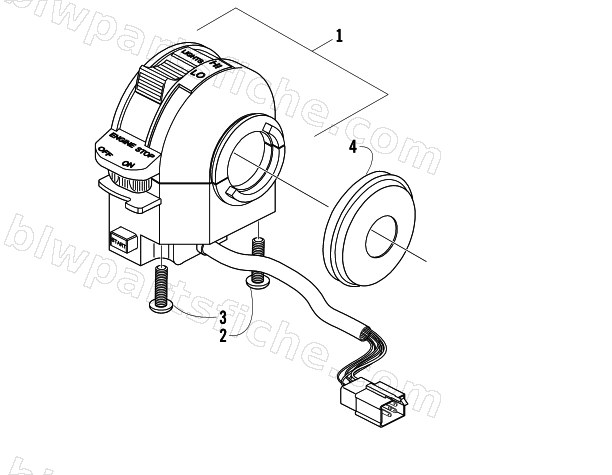

2004 Arctic Cat 500 MANUAL TRANSMISSION 4X4 FIS MRP — CONTROL SWITCH HOUSING ASSEMBLY
2004 500 MANUAL TRANSMISSION 4X4 FIS MRP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0509-013 | HANDLE CONTROL,LEFT-ASSY | 1 | $183.95 | |
| 2 | 3423-197 | SCREW, 5X45 | 1 | $2.61 | |
| 3 | 3423-196 | SCREW, 5X40 | 1 | $2.33 | |
| 4 | 3409-019 | COVER, DUST | 1 | $2.61 |
