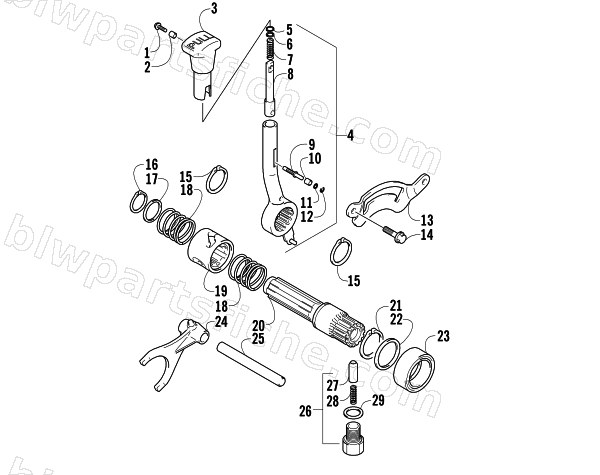

2004 Arctic Cat 500 MANUAL TRANSMISSION 4X4 FIS MRP — HI/LO SHIFTER ASSEMBLY
2004 500 MANUAL TRANSMISSION 4X4 FIS MRP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3423-900 | SCREW,SUB T/M SHIFT LEVER KNOB | 1 | $3.02 | |
| 2 | 3402-191 | SPACER, M4.1X6.5X7.2 | 1 | $6.47 | |
| 3 | 3446-078 | KNOB COMP, SUB T/M GEAR SHIFT | 1 | $26.95 | |
| 4 | 3446-351 | LEVER ASSY, SHIFT | 1 | $263.95 | |
| 5 | 3423-154 | CIRCLIP, SUB T/M SHF LEV,M12 | 1 | $3.30 | |
| 6 | 3423-155 | WASHER, SUB T/M SHF LVR-M8X15 | 1 | $2.61 | |
| 7 | 3446-107 | SPRING | 1 | $12.35 | |
| 8 | 3446-252 | ROD,SUB T/M SHIFT | 1 | $45.95 | |
| 9 | 3423-205 | PIN | 1 | $16.49 | |
| 10 | 3446-106 | COLLAR | 1 | $6.20 | |
| 11 | 3423-902 | WASHER SUB T/M 4MM | 1 | $3.16 | |
| 12 | 3423-153 | E-RING, SHIFT LEVER PIN,FASTENER | 1 | $3.57 | |
| 13 | 3446-077 | PLATE, SUB T/M SHIFT LEVER STOP | 1 | $37.95 | |
| 14 | 3007-392 | BOLT | 1 | $3.95 | |
| 15 | 3423-192 | CIRCLIP,FASTENER | 1 | $4.40 | |
| 16 | 3423-191 | CIRCLIP,FASTENER | 1 | $2.33 | |
| 17 | 3402-382 | SHIM,M25X32X1 | 1 | $6.34 | |
| 18 | 3446-104 | SPRING, SUB T/M SHIFT CAM | 1 | $10.97 | |
| 19 | 3446-250 | CAM,SUB T/M GEAR SHIFT | 1 | $118.95 | |
| 20 | 3446-328 | SHAFT,SUB T/M GEAR | 1 | $244.95 | |
| 21 | 3423-913 | CIRCLIP,FASTENER | 1 | $5.95 | |
| 22 | 3006-489 | SHIM,30X38X1 | 1 | $10.97 | |
| 23 | 3402-071 | OIL SEAL ,M30X56X6 | 1 | $26.95 | |
| 24 | 3446-073 | FORK, SUB T/M GEAR SHIFT | 1 | $126.95 | |
| 25 | 3446-051 | SHAFT, GEAR SHIFT FORK | 1 | $47.95 | |
| 26 | 3446-314 | STOPPER, SUB T/M SHIFT CAM | 1 | $37.95 | |
| 27 | 3446-315 | STOPPER | 1 | $20.95 | |
| 28 | 3423-524 | SPRING | 1 | $6.34 | |
| 29 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 |
