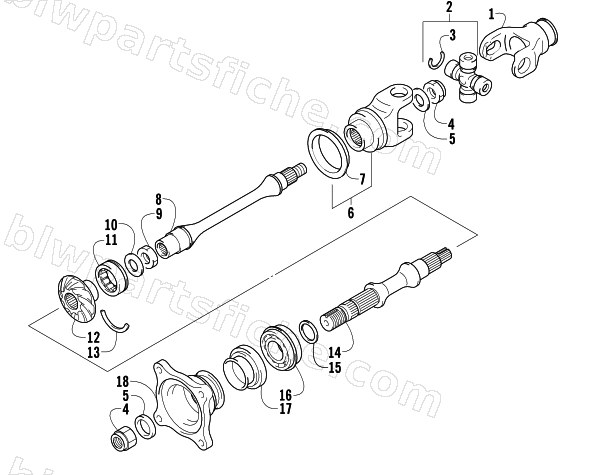

2004 Arctic Cat 500 MANUAL TRANSMISSION 4X4 FIS MRP — SECONDARY DRIVE ASSEMBLY
2004 500 MANUAL TRANSMISSION 4X4 FIS MRP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-327 | YOKE,PROP SHAFT JOINT | 1 | $196.95 | |
| 2 | 3402-562 | JOINT SET, UNIVERSAL | 1 | $73.95 | |
| 3 | 3423-479 | CIRCLIP | 1 | $5.92 | |
| 4 | 3423-025 | NUT,16MM | 1 | $4.95 | |
| 5 | 3423-028 | WASHER,16MM | 1 | $5.95 | |
| 6 | 3402-742 | YOKE, FR DRIVE OUTPUT | 1 | $235.95 | |
| 7 | 3402-743 | PLATE, OUTPUT | 1 | $23.39 | |
| 8 | 3446-239 | SHAFT,SEC.DRIVEN,FRONT | 1 | $331.95 | |
| 9 | 3423-136 | NUT, SEC DRIVEN GEAR,22MM | 1 | $19.25 | |
| 10 | 3423-137 | WASHER, SEC DRIVEN GEAR-M22X36 | 1 | $6.34 | |
| 11 | 3402-515 | BEARING, SEC DRIVEN GEAR,M (30X50X17) | 1 | $79.95 | |
| 12 | 3446-222 | GEAR,SEC DRIVEN BEVEL | 1 | $292.95 | |
| 13 | 3423-072 | C RING,M50 | 1 | $5.78 | |
| 14 | 3446-426 | SHAFT,SEC DRIVEN OUTPUT,RR | 1 | $252.95 | |
| 15 | 3402-017 | SHIM,25MM | 1 | $5.92 | |
| 15 | 3402-018 | SHIM,25MM | 1 | $5.92 | |
| 15 | 3402-019 | SHIM,25MM | 1 | $5.92 | |
| 15 | 3402-020 | SHIM,25MM | 1 | $5.92 | |
| 15 | 3403-217 | SHIM,25X34X0.8 | 1 | $5.92 | |
| 15 | 3402-022 | SHIM,25MM | 1 | $5.95 | |
| 15 | 3402-023 | SHIM,25MM | 1 | $5.92 | |
| 15 | 3402-024 | SHIM,25MM | 1 | $5.92 | |
| 15 | 3423-421 | WASHER, SHIFT SHAFT (M25X34X1.0) | 1 | $5.51 | |
| 15 | 3402-028 | SHIM,25MM | 1 | $6.20 | |
| 15 | 3402-029 | SHIM,25MM | 1 | $6.47 | |
| 15 | 3402-030 | SHIM,25MM | 1 | $6.47 | |
| 15 | 3402-031 | SHIM,25MM | 1 | $6.47 | |
| 16 | 3403-210 | BEARING,REAR OUTPUT SHAFT RR | 1 | $106.95 | |
| 17 | 3402-072 | OIL SEAL ,M34X52X9 | 1 | $23.39 | |
| 18 | 3402-514 | FLANGE, RR OUTPUT JOINT | 1 | $212.95 |
