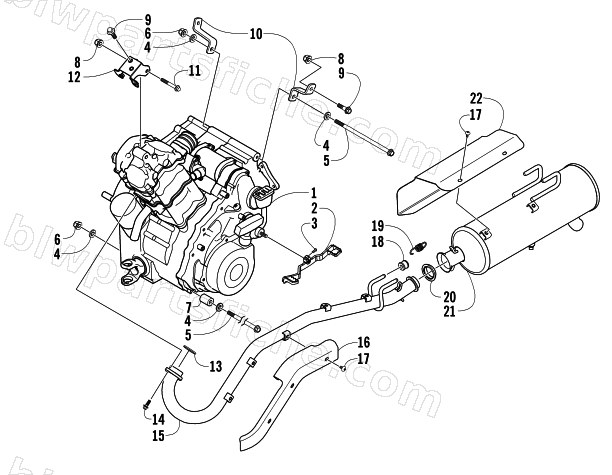

2004 Arctic Cat 500 MANUAL TRANSMISSION 4X4 FIS — ENGINE AND EXHAUST
2004 500 MANUAL TRANSMISSION 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0462-031 | ENGINE-ASSY 500M 4X (W/ELEC SPEEDO) | 1 | $5,971.95 | |
| 2 | 0502-436 | LEVER,SHIFT-BLACK | 1 | $49.95 | |
| 3 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 4 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 5 | 0423-405 | SCREW,CAP-HFH M10X1.25X215 CL10.9 Z&Y | 1 | $6.34 | |
| 6 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 7 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 8 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 9 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 10 | 1506-205 | BRACKET, ENGINE MOUNT - RH BLACK (500M) | 1 | $20.63 | |
| 10 | 1506-206 | BRACKET, ENGINE MOUNT - LH BLACK (500M) | 1 | $20.63 | |
| 11 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 12 | 0506-546 | BRKT, MOTOR MOUNT-BLACK | 1 | $20.95 | |
| 13 | 0412-007 | SEAL,EXHAUST PIPE | 1 | $17.87 | |
| 14 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 15 | 0512-179 | PIPE,EXHAUST-BLACK | 1 | $206.95 | |
| 16 | 0412-228 | COVER,EXHAUST PIPE (500M) | 1 | $169.95 | |
| 17 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 18 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 19 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 20 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 21 | 0512-139 | MUFFLER,BLACK | 1 | $1,018.95 | |
| 22 | 0412-218 | COVER,MUFFLER | 1 | $71.95 |
