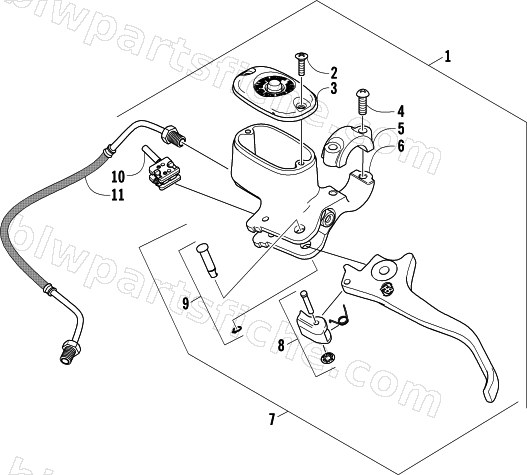

2004 Arctic Cat 650 V-2 4X4 FIS CA — HYDRAULIC HAND BRAKE ASSEMBLY
2004 650 V-2 4X4 FIS CA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-765 | KIT,MASTER CYLINDER FULL ASSY(BLK FLARE) | 1 | $501.95 | |
| 2 | 0502-566 | KIT, RESERVOIR COVER SCREWS | 1 | $6.47 | |
| 3 | 0502-565 | KIT, RESERVOIR COVER SUB-ASSEMBLY | 1 | $79.95 | |
| 4 | 0502-568 | KIT, CLAMP SCREWS | 1 | $20.63 | |
| 5 | 0502-567 | KIT, MASTER CYLINDER CLAMP | 1 | $43.95 | |
| 6 | 1502-766 | KIT,REBUILD MASTER CYLINDER(BLK FLARE) | 1 | $199.95 | |
| 7 | 0502-634 | KIT,LEVER AND PARK LEVER SUB-ASSEMBLY | 1 | $118.95 | |
| 8 | 1502-905 | KIT,PARK LEVER SUB-ASSY | 1 | $20.63 | |
| 9 | 0502-580 | KIT,SNAP RING | 1 | $20.63 | |
| 10 | 0502-564 | KIT, BRAKE LIGHT SWITCH | 1 | $58.95 | |
| 11 | 1402-212 | HOSE,BRAKE-MASTER CYLINDER | 1 | $79.95 |
