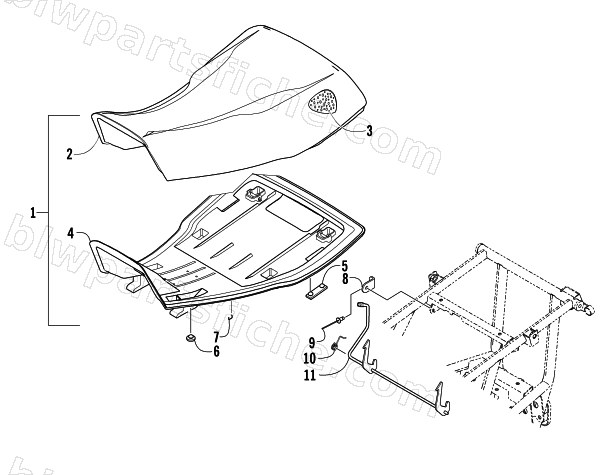

SEAT ASSEMBLY
2004 650 V-2 4X4 FIS MRP CA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-435 | SEAT,ASSY | 1 | $292.95 | |
| 2 | 0506-556 | COVER, SEAT | 1 | $129.95 | |
| 3 | 0506-555 | FOAM,SEAT (68-72ILD).48@3.3 | 1 | $100.95 | |
| 4 | 0406-878 | BASE, SEAT | 1 | $148.95 | |
| 5 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 6 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 7 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 8 | 1406-087 | CLIP,RETAINER-SEAT LATCH | 1 | $3.30 | |
| 9 | 8060-284 | RIVET,BLIND-DH SS43 ZINC | 1 | $0.26 | |
| 10 | 1406-371 | SPRING,SEAT-LATCH | 1 | $3.02 | |
| 11 | 1506-217 | LATCH,SEAT-WELDMENT | 1 | $94.95 |
