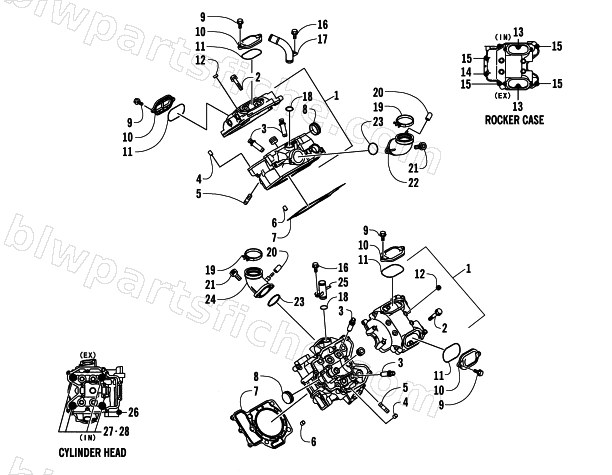

CYLINDER HEAD ASSEMBLY
2004 650 V-2 4X4 FIS MRP NA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3201-064 | HEAD-COMP-CYLINDER,FR | 1 | $1,223.95 | |
| 1 | 3201-065 | HEAD-COMP-CYLINDER,RR | 1 | $1,454.95 | |
| 2 | 3201-368 | BOLT,6X55 | 1 | $10.95 | |
| 3 | 3201-216 | GUIDE-VALVE | 1 | $35.95 | |
| 4 | 3201-304 | PIN,6.2X8X14 | 1 | $1.95 | |
| 5 | 3201-264 | STUD,8X22 | 1 | $10.95 | |
| 6 | 3201-307 | PIN,10.1X12X14 | 1 | $10.95 | |
| 7 | 3201-440 | GASKET-HEAD | 1 | $48.95 | |
| 8 | 3201-353 | PLUG | 1 | $20.95 | |
| 9 | 3201-036 | BOLT,FLANGED-SMALL | 1 | $6.95 | |
| 10 | 3201-075 | CAP,ROCKER CASE | 1 | $32.95 | |
| 11 | 3201-459 | O-RING | 1 | $12.95 | |
| 12 | 3201-071 | GASKET,6.2X12X0.3 | 1 | $3.95 | |
| 13 | 3201-140 | BOLT-FLANGED-SMALL,6X25 | 1 | $6.95 | |
| 14 | 3201-145 | BOLT-FLANGED-SMALL | 1 | $5.95 | |
| 15 | 3201-146 | BOLT-FLANGED-SMALL | 1 | $6.95 | |
| 17 | 3201-046 | PIPE-WATER | 1 | $29.95 | |
| 18 | 3201-048 | O-RING | 1 | $2.95 | |
| 19 | 3201-049 | CLAMP | 1 | $13.95 | |
| 20 | 3201-354 | PLUG,12X25 | 1 | $6.95 | |
| 21 | 3201-099 | BOLT-SOCKET | 1 | $6.95 | |
| 22 | 3201-172 | HOLDER-CARBURETOR | 1 | $56.95 | |
| 23 | 3201-337 | RING-O,38MM | 1 | $25.95 | |
| 24 | 3201-173 | HOLDER-CARBURETOR,RR | 1 | $56.95 | |
| 25 | 3201-047 | PIPE-WATER | 1 | $40.95 | |
| 26 | 3201-150 | BOLT-FLANGED-SMALL | 1 | $12.95 | |
| 27 | 3201-377 | BOLT | 1 | $32.95 | |
| 28 | 3201-279 | WASHER,11.5X20.5X1.6 | 1 | $6.95 |
