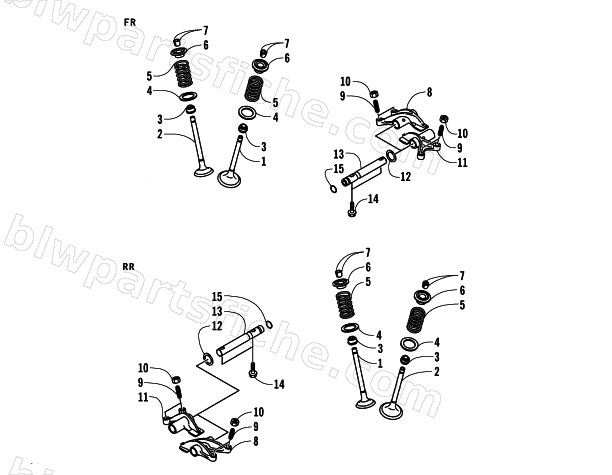

2004 Arctic Cat 650 V-2 4X4 FIS MRP NA — VALVE ASSEMBLY
2004 650 V-2 4X4 FIS MRP NA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3201-406 | VALVE-INTAKE | 1 | $56.95 | |
| 2 | 3201-457 | VALVE-EXHAUST | 1 | $82.95 | |
| 3 | 3201-322 | SEAL-OIL,VSB58.558 | 1 | $6.95 | |
| 4 | 3201-169 | SEAT-SPRING,17.5X23.8X0.5 | 1 | $10.95 | |
| 5 | 3201-233 | SPRING-ENGINE VALVE | 1 | $22.95 | |
| 6 | 3201-078 | RETAINER-VALVE SPRING | 1 | $17.95 | |
| 7 | 3201-079 | COLLET | 1 | $3.95 | |
| 8 | 3201-080 | ARM-ROCKER,EXHAUST | 1 | $135.95 | |
| 9 | 3201-270 | SCREW,6MM | 1 | $12.95 | |
| 10 | 3201-275 | NUT,6MM | 1 | $9.95 | |
| 11 | 3201-081 | ARM-ROCKER,INTAKE | 1 | $158.95 | |
| 12 | 3201-401 | WASHER,ROCKER ARM | 1 | $5.95 | |
| 13 | 3201-082 | SHAFT-ROCKER | 1 | $45.95 | |
| 15 | 3201-256 | O RING,9MM | 1 | $6.95 |
