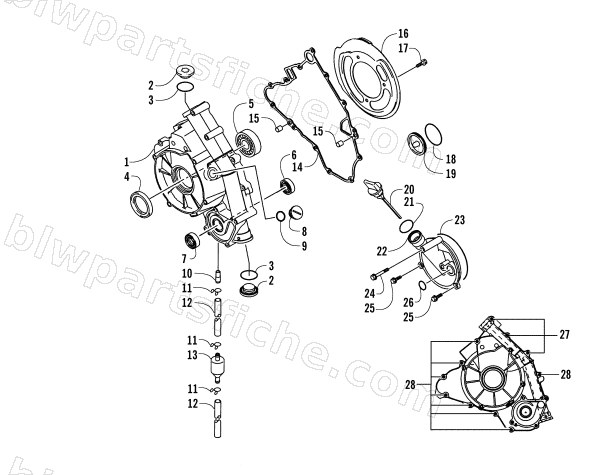

ENGINE COVERS
2004 650 V-2 4X4 FIS MRP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3201-159 | COVER-MAGNETO | 1 | $316.95 | |
| 2 | 3201-351 | PLUG,25X8 | 1 | $17.95 | |
| 3 | 3201-332 | RING-O,25.7X2.4 | 1 | $6.95 | |
| 4 | 3201-329 | SEAL-OIL | 1 | $22.95 | |
| 5 | 3201-313 | BEARING-BALL | 1 | $29.95 | |
| 6 | 3201-311 | BEARING-BALL,6901 | 1 | $40.95 | |
| 7 | 3201-323 | SEAL-OIL,AC037AE0 | 1 | $13.95 | |
| 8 | 3201-350 | PLUG,COVER | 1 | $22.95 | |
| 9 | 3201-333 | RING-O | 1 | $13.95 | |
| 10 | 3201-266 | FITTING | 1 | $13.73 | |
| 11 | 3201-052 | CLAMP | 1 | $12.95 | |
| 12 | 3201-051 | TUBE-RUBBER | 1 | $4.95 | |
| 13 | 3201-050 | BREATHER | 1 | $16.95 | |
| 14 | 3201-072 | GASKET | 1 | $29.95 | |
| 15 | 3201-304 | PIN,6.2X8X14 | 1 | $1.95 | |
| 16 | 3201-168 | COVER,BELT CONVERTER | 1 | $29.95 | |
| 18 | 3201-028 | O-RING,44.7X2.4 | 1 | $12.95 | |
| 19 | 3201-074 | CAP | 1 | $25.95 | |
| 20 | 3201-175 | CAP-OIL FILLER | 1 | $20.95 | |
| 21 | 3201-344 | R/B 3201-459 | 1 | $1.95 | |
| 22 | 3201-166 | COVER | 1 | $97.95 | |
| 23 | 3201-341 | RING-O | 1 | $17.95 | |
| 24 | 3201-149 | BOLT-FLANGED-SMALL | 1 | $9.95 | |
| 25 | 3201-036 | BOLT,FLANGED-SMALL | 1 | $6.95 | |
| 26 | 3201-258 | O RING | 1 | $3.95 | |
| 27 | 3201-148 | BOLT-FLANGED-SMALL | 1 | $10.95 | |
| 28 | 3201-146 | BOLT-FLANGED-SMALL | 1 | $6.95 |
