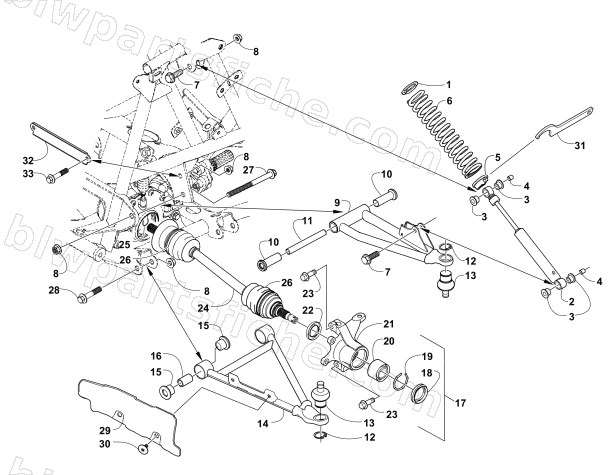

FRONT SUSPENSION ASSEMBLY
2004 650 V-2 4X4 FIS SE CA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 2 | 0403-127 | SHOCK ABSORBER-FRONT (UB) | 1 | $118.95 | |
| 3 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 4 | 0403-028 | SLEEVE,SHOCK | 1 | $3.02 | |
| 5 | 0403-395 | CAM,ADJUSTER-SPRING | 1 | $20.63 | |
| 6 | 0403-130 | SPRING,COIL-YELLOW | 1 | $35.95 | |
| 7 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 8 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 9 | 0503-416 | A-ARM,FRONT UPPER RH-BLACK-ASSY | 1 | $260.95 | |
| 9 | 0503-417 | A-ARM,FRONT UPPER LH-BLACK-ASSY | 1 | $260.95 | |
| 10 | 0403-289 | BUSHING,UPPER A-ARM SUSPENSION | 1 | $4.13 | |
| 11 | 0403-439 | COLLAR,SUSPENSION BUSHING-UPPER A-ARM | 1 | $17.87 | |
| 12 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 13 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 14 | 0503-220 | A-ARM,FRONT LOWER RH-ASSEMBLY | 1 | $220.95 | |
| 14 | 0503-221 | A-ARM,FRONT LOWER LH-ASSEMBLY | 1 | $220.95 | |
| 15 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 16 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 17 | 0505-452 | KNUCKLE,STEERING-RH ASSY | 1 | $252.95 | |
| 17 | 0505-453 | KNUCKLE,STEERING-LH ASSY | 1 | $252.95 | |
| 18 | 0402-089 | SEAL,40MMX55MMX6MM-DBL LIP(R/B 2402-611) | 1 | $4.95 | |
| 19 | 0423-034 | CLIP,BEARING | 1 | $5.51 | |
| 20 | 0402-275 | BEARING, WHEEL | 1 | $58.95 | |
| 22 | 0402-069 | SEAL,40MMX58MMX7MM-3 LIP | 1 | $5.95 | |
| 23 | 0423-998 | SCREW,SHLDR-M10X30 CL10.9 BLK (W/ PATCH) | 1 | $2.61 | |
| 24 | 1502-442 | HALFSHAFT | 1 | $454.95 | |
| 24 | 0502-546 | AXLE,DRIVE (FIS LK) | 1 | $494.95 | |
| 25 | 1441-816 | CLIP,RETAINING-IB (22X21) | 1 | $0.95 | |
| 26 | 1436-207 | KIT,CV BOOT-UNIVERSAL | 1 | $73.95 | |
| 27 | 0423-334 | SCREW, CAP-HFH M10-1.25 X165 Z&Y CL10.9 | 1 | $5.65 | |
| 28 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 29 | 1406-034 | GUARD, BOOT-RH (BLACK) | 1 | $37.95 | |
| 29 | 1406-035 | GUARD, BOOT-LH (BLACK) | 1 | $37.95 | |
| 30 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 31 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 | |
| 32 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 33 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 |
