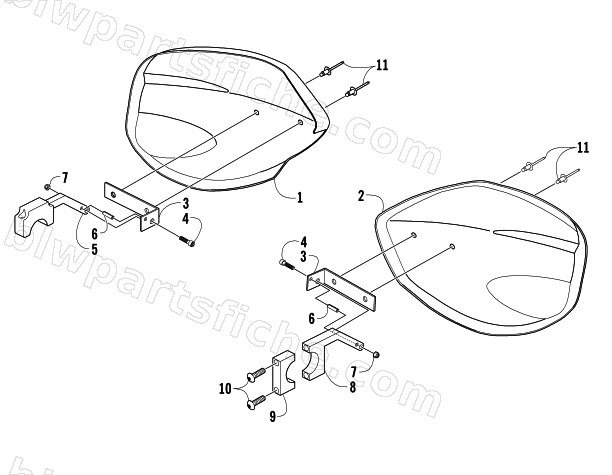

2004 Arctic Cat 650 V-2 4X4 FIS SE CA — HAND GUARD ASSEMBLY
2004 650 V-2 4X4 FIS SE CA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0436-614 | GUARDS,HAND-LIME | 1 | $58.95 | |
| 3 | 0436-610 | KIT,HAND GUARD HARDWARE | 1 | $37.95 | |
| 4 | 0423-504 | SCREW,CAP-HSH M6X1.0X25 CL10 | 1 | $1.78 | |
| 6 | 8070-218 | PIN,SPRING-1/8 X 5/8 SLOTTED | 1 | $1.50 | |
| 7 | 8422-601 | NUT,HEX-THK NYL M6X1.0 CL8 Z&C | 1 | $1.78 | |
| 10 | 0423-503 | SCREW,CAP-TSBH M6X1.0X30 RIE BLK | 1 | $2.61 | |
| 11 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 |
