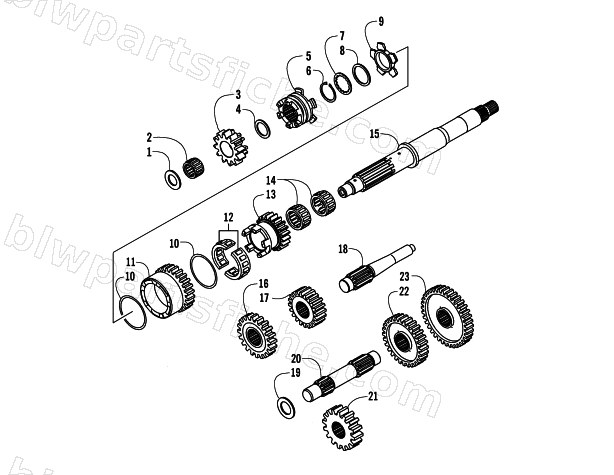

TRANSMISSION ASSEMBLY
2004 650 V-2 4X4 FIS SE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3201-283 | SPACER,17.3X30X2.0 | 1 | $13.95 | |
| 2 | 3201-320 | BEARING-NEEDLE,REVERSE GEAR | 1 | $29.95 | |
| 3 | 3201-443 | GEAR,INPUT REVERSE,12T | 1 | $145.95 | |
| 4 | 3201-285 | SPACER,21.2X29X1.6 | 1 | $13.95 | |
| 5 | 3201-426 | SHIFTER | 1 | $129.95 | |
| 6 | 3201-297 | RING-SNAP,T=1.2 | 1 | $6.95 | |
| 7 | 3201-397 | WASHER,T=1.5 | 1 | $17.95 | |
| 8 | 3201-288 | SPACER,28.2X34.5X1.6 | 1 | $6.95 | |
| 9 | 3201-290 | SPACER,HI&LOW | 1 | $64.95 | |
| 10 | 3201-289 | SPACER,48.2X54.3X1.0 | 1 | $10.95 | |
| 11 | 3201-129 | GEAR,INPUT HIGH,26T | 1 | $174.95 | |
| 12 | 3201-317 | BEARING-NEEDLE,HIGH GEAR | 1 | $48.95 | |
| 13 | 3201-442 | GEAR,INPUT LOW,20T | 1 | $181.95 | |
| 14 | 3201-319 | BEARING-NEEDLE,LOW GEAR | 1 | $32.95 | |
| 15 | 3201-425 | SHAFT-TRANSMISSION INPUT | 1 | $354.95 | |
| 16 | 3201-135 | GEAR,DRIVEN REVERSE,16T | 1 | $145.95 | |
| 17 | 3201-134 | GEAR,OUTPUT REVERSE,16T | 1 | $145.95 | |
| 18 | 3201-115 | SHAFT,REVERSE,IDLE | 1 | $197.95 | |
| 19 | 3201-398 | WASHER,20.3X33X2.0 | 1 | $4.95 | |
| 20 | 3201-114 | SHAFT,OUTPUT | 1 | $178.95 | |
| 21 | 3201-133 | GEAR,OUTPUT DRIVE,18T | 1 | $139.95 | |
| 22 | 3201-132 | GEAR,DRIVEN HIGH,30T | 1 | $145.95 | |
| 23 | 3201-131 | GEAR,DRIVEN LOW,36T | 1 | $139.95 |
