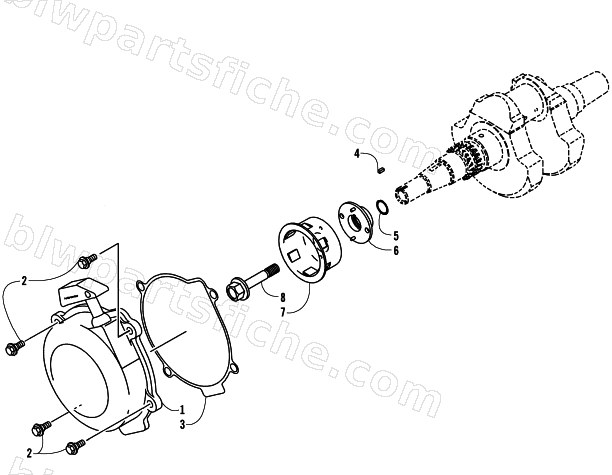

2004 Arctic Cat 650 V-2 4X4 FIS — RECOIL STARTER
2004 650 V-2 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3201-235 | STARTER-RECOIL | 1 | $542.95 | |
| 2 | 3201-380 | BOLT,RECOIL STARTER | 1 | $9.95 | |
| 3 | 3201-073 | GASKET,RECOIL STARTER | 1 | $29.95 | |
| 4 | 3201-302 | KEY,SUNK | 1 | $8.95 | |
| 5 | 3201-334 | RING-O,19.8X2.2 | 1 | $6.95 | |
| 6 | 3201-108 | BOSS | 1 | $87.95 | |
| 7 | 3201-234 | PULLEY-STARTING | 1 | $129.95 | |
| 8 | 3201-369 | BOLT,PULLEY | 1 | $17.95 |
